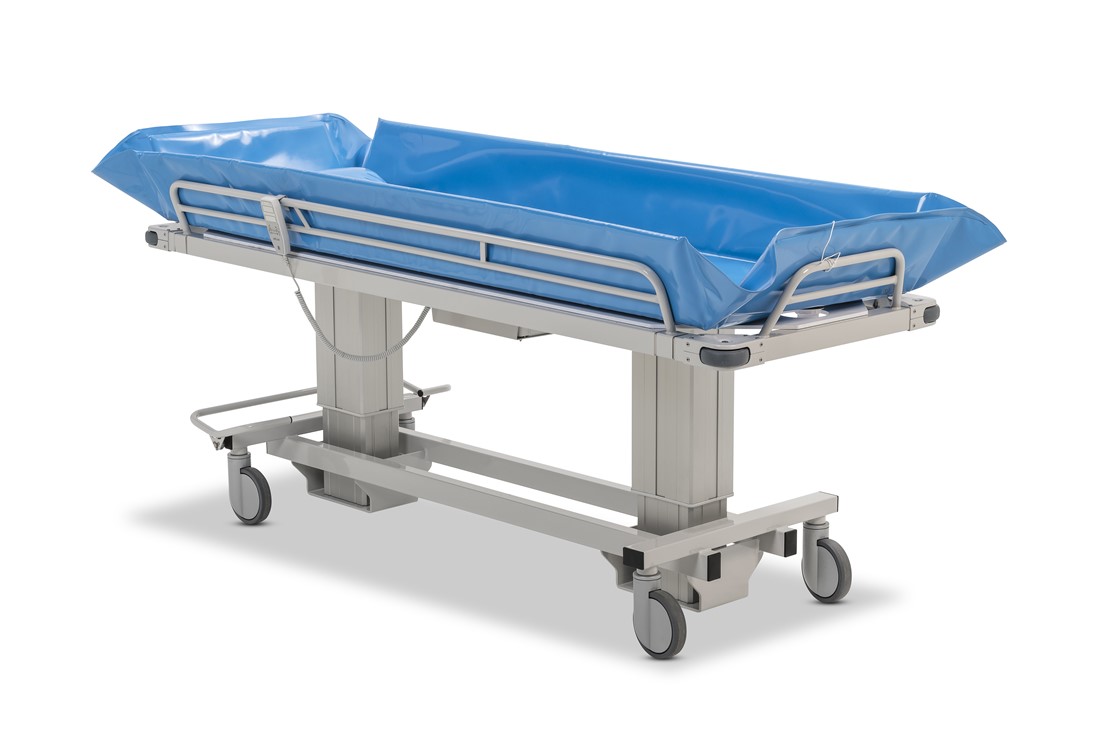

BARIATRIC SHOWER TROLLEY TR 4000
Offers safe, efficient and dignified care for plus size patients.
Battery operated bariatric shower trolley that meets all your hygiene and work safety related needs working with assisted showering.
Shower trolley with lots of power and plenty of body space designed for a Working Load Limit of 450 kg/1000 lbs. The shower trolley is suitable for many different purposes besides showering, for example dressing and nursing: the possibilities are endless.
TR4000 comes delivered ready for use with a mag code battery charger, mattress, 15 degree wedge pillow and 1 m flexible drainage hose.
Features
Standard Equipment

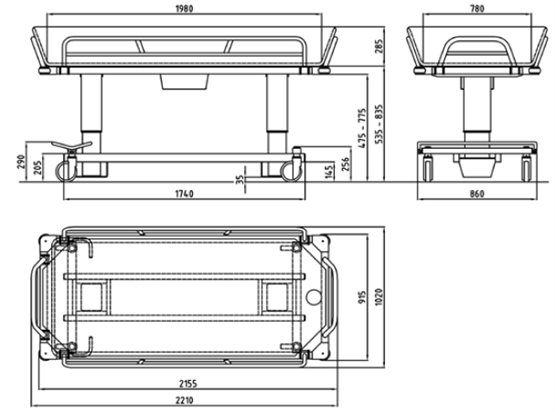

Measurements (mm)
Product Measurement document available for download at the bottom of the page.

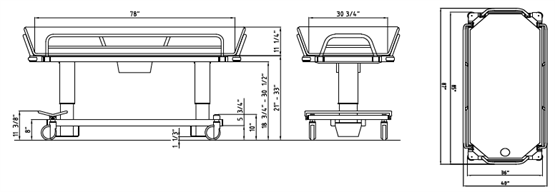

Measurements (inch)
Product Measurement document available for download at the bottom of the page.
Maximum patient weight of 450 kg / 1000 lbs
Hand control
The hand held control operates the power tilt in both directions and raises and lowers the trolley.
Bumper wheel protection
The stretcher has rubber bumper wheels on all four corners to protect walls and doorways.
Large castors
Large castors (150 mm) for convenient and easy transport of the shower trolley.
Mattress and head pillow
Well proven high quality durable mattress designed to last for years made in Flame retardant PVC material.
Easily removable from the shower trolley.
Standard mattress and pillow color for TR4000 is GREY
Drainage at the foot end
The chassis and sub-frames are made of powder coated stainless steel
High capacity batteries
On board, high capacity, rechargeable batteries (24 V, 14 Ah) to be charged via main supply. Magnetic battery charger connection for safety and ease of use.
Audible tone when battery is running low.
Flexible drainage hose, L=1 m
For Caregiver
Basic specifications
Safe Patient Handling
The product is height-adjustable for caregiver's ergonomic use and is specifically designed and manufactured for safe in-patient hospital use showering both bariatric and taller patients.
Height adjustable
By using the hand control, the stretcher easily and quietly raises by two powerful actuators and enables a comfortable and ergonomic working position for the caregiver. The adjustment height is between 535-835 mm.
Tilt adjustment
By using the hand control, the stretcher can easily be tilted (+-4°) to the "Trendelenburg" position to alleviate a person in shock.
The tilting function also eases drainage.
An audible tone sounds when the stretcher is level.
The mattress is easily removable
Inherent in the design of the TR4000 is safety for both the patient and caregiver while also being easy to clean and disinfect after use.
Centralized break and straight steering
Convenient single foot control for brakes on all four castors and straight steering.
Foldable and flexible side rails
Shower Trolley with 180 degrees foldable side rails in stainless steel that locks into position.
The flexible side rail gives the caregiver easier access during patient transfer, they can also be pressed together when passing through narrow doorways.
Extra body length
Head end rail folds to horizontal position for extra length.
Transfer and operation
The bariatric Shower Trolley is easy to operate, clean and maintain and offers efficient, safe and dignified patient transfer, transport and showering.
Use with TR 2810 Shower panel
Suitable to use with TR 2810 Shower panel to fulfill a complete shower system that is comfortable for both caregiver and patient.
Accessories / Options

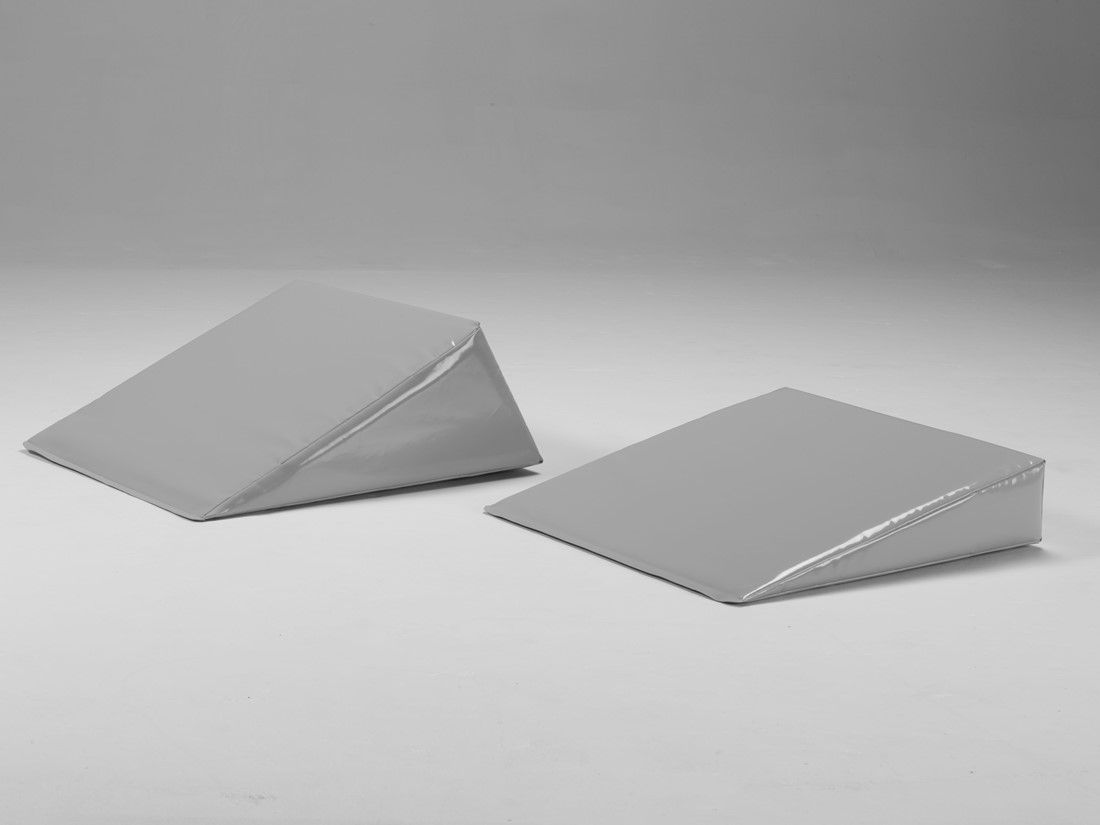

Backrest wedge pillow
Use of wedge pillows to incline the paitiens back for comfort and safety.
TR 4000 come as standrad with GREY mattress and a 15 degree wedge pillow, but a 30 degree wedge pillow (see photo) available as option.
Can be delivered with blue mattress instead of standard grey
Fastners/straps for attachment on mattresses to side rails
Long flexible drainage hose, L = 2,5 m
Instead of standard L = 1 m

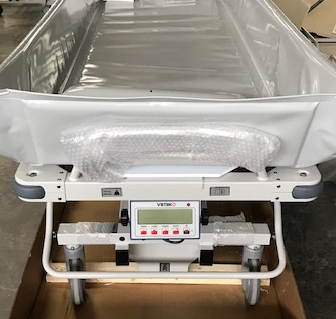

Scale
TR 4000 Shower Trolley can be equipped with a scale. Scale solution is provided and mounted by a third party scale company.
