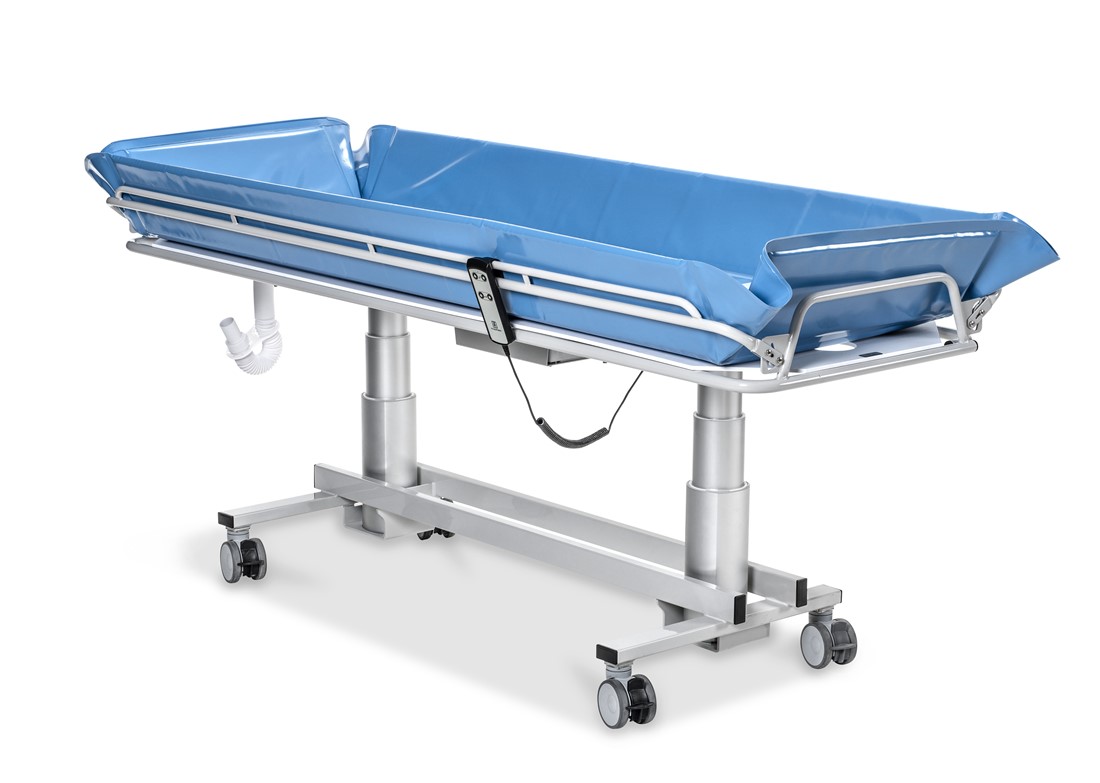

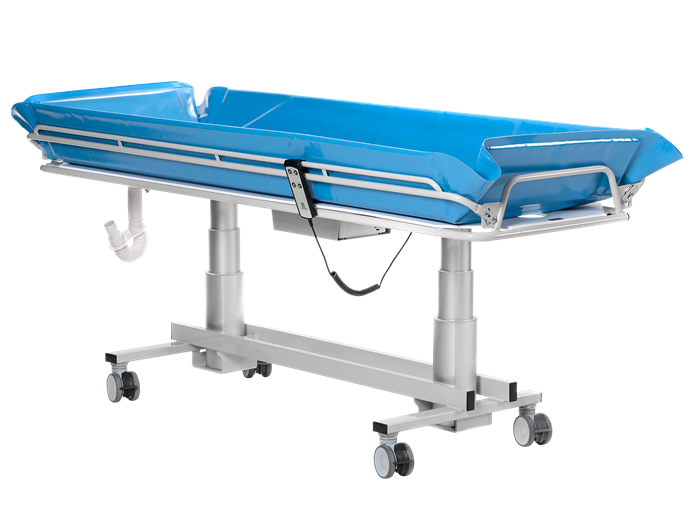

SHOWER TROLLEY TR 3200
Multi-tasking battery operated shower trolley with endless application possibilities
The TR 3200 shower trolley (max patient weight 220 kg) is unique with its side dual mounted columns, allowing the trolley stretcher to overlap the bed further for a safe and easy resident transfer.
The trolley drains at both ends allowing the person to be positioned in either direction, an invaluable feature for the caregiver.
The TR3200 comes in two sizes, and both versions are available with on board battery solution or with removeable rechargeable batteries.
All TR3200 models comes delivered ready for use with a mag code charger, mattress, head pillow, 4 braked castors and 1 m flexible drainage hose.
Features
Standard Equipment
Measurements (mm)
Product Measurement document available for download at the bottom of the page.
Measurements (inch)
Product Measurement document available for download at the bottom of the page.
Maximum patient weight of 220 Kg / 493 lbs
Battery solution
On board battery solution as standard
(removable battery option available)
Audible tone when the battery is running low.

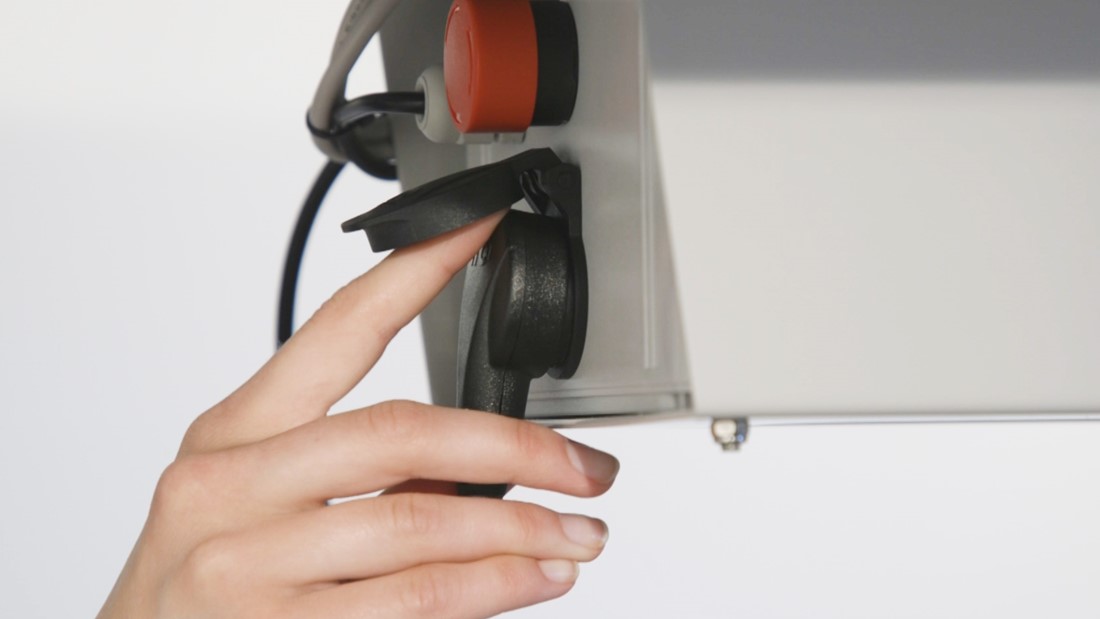

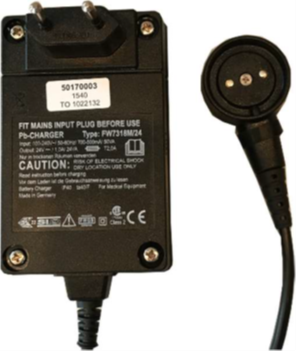

High capacity rechargeable batteries (14 Ah) to be charged via main supply using a magnetic battery charger connection for safety and ease of use.

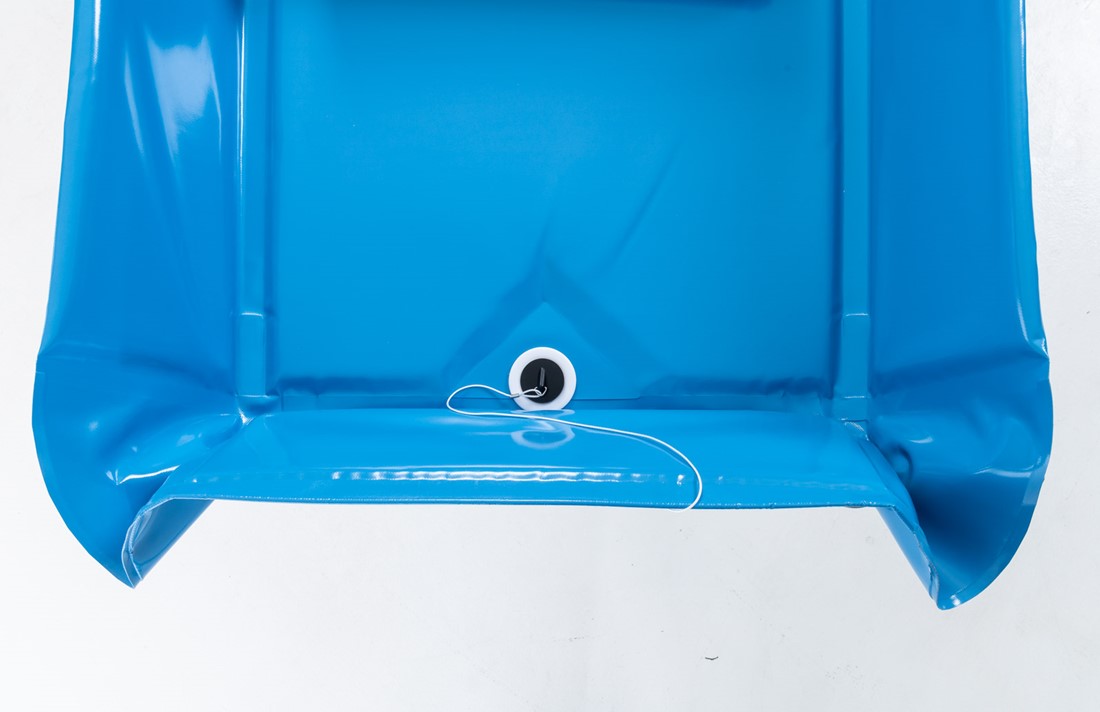

Dual drainage offers easy change of designated head end
Floor clearance at 160 mm to enable floor lift transfers
The chassis and sub-frames are made of powder coated stainless steel
Proven choice of durable high-quality material guarantees a low cost of ownership.

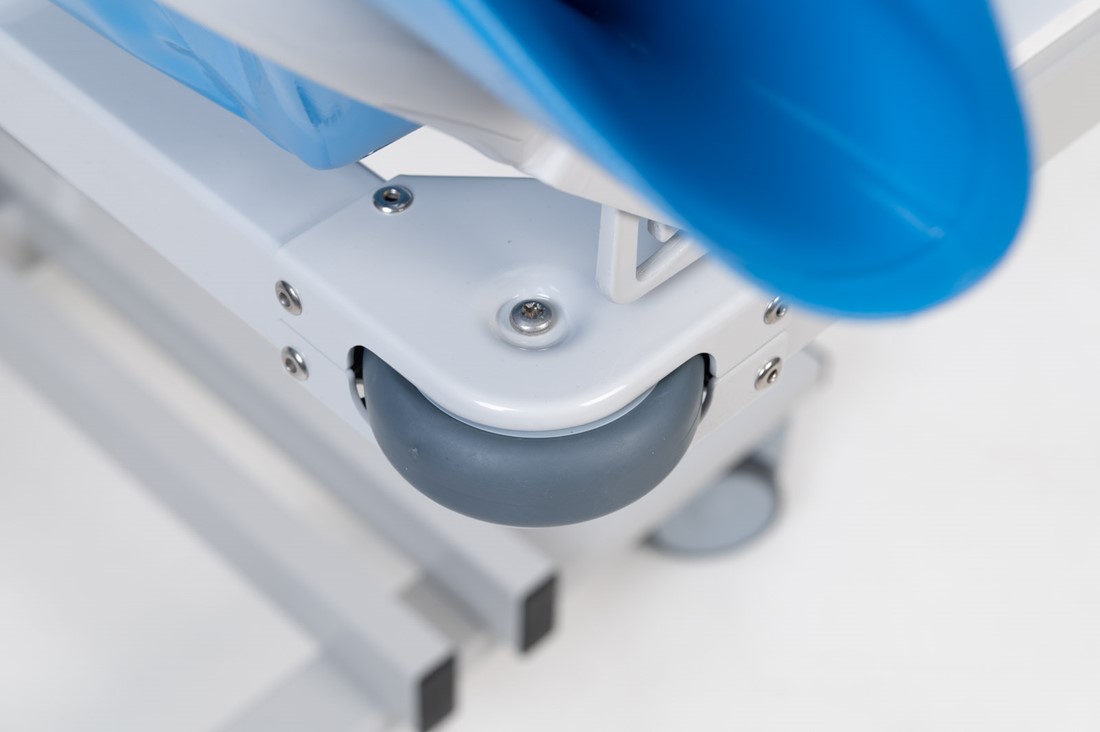

Bumper wheel protection
The stretcher has rubber bumper wheels on all four corners to protect walls and doorways.

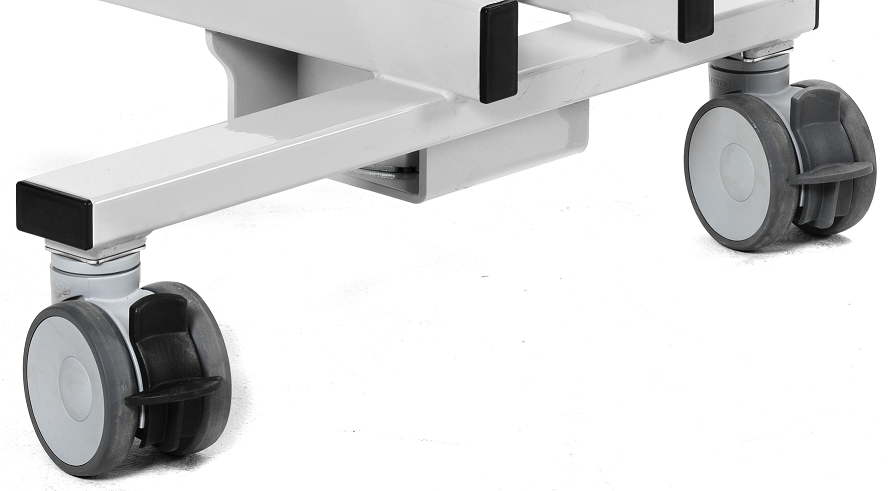

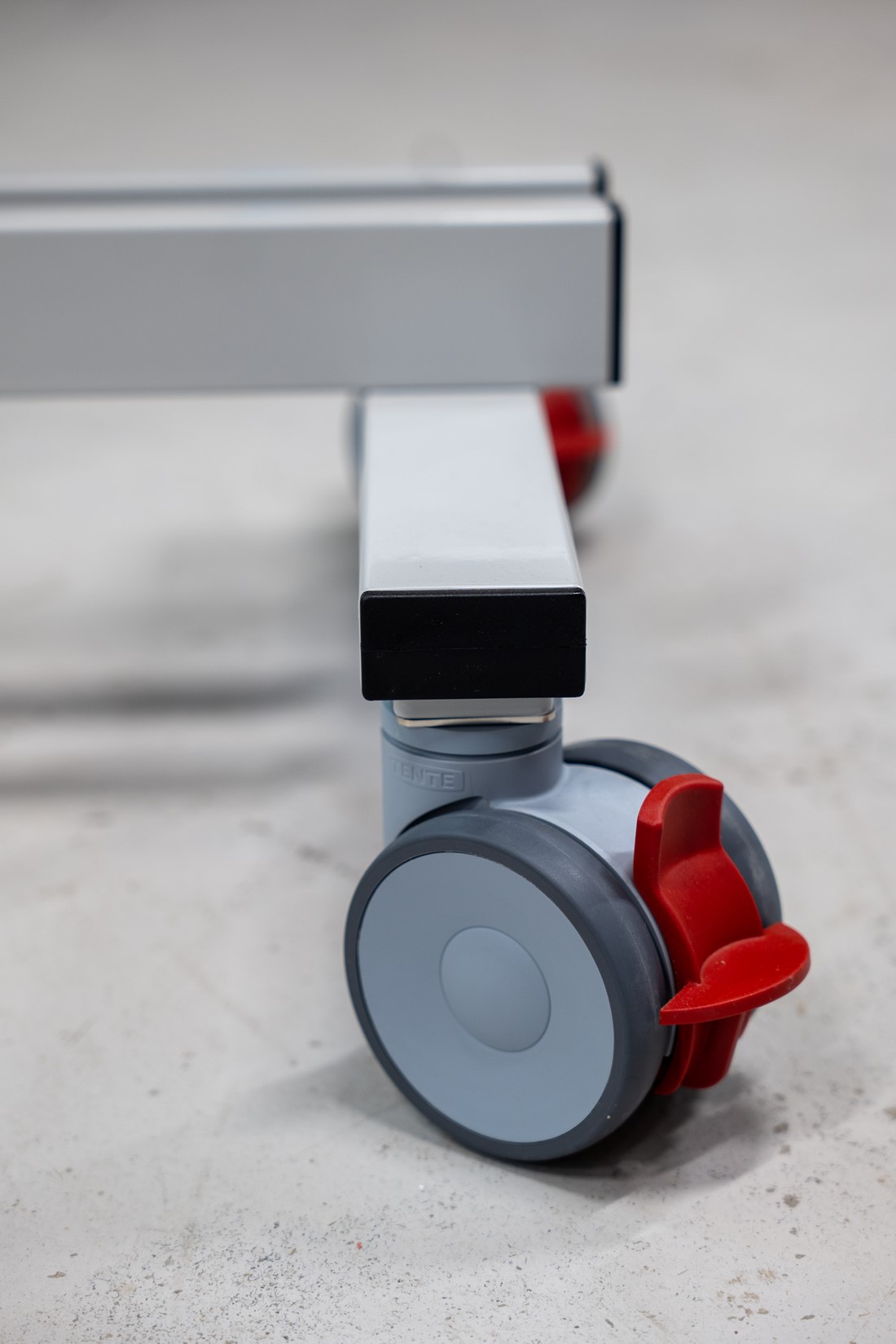

Four 100 mm braked twin castors as standard
Straight Steering castors available as an option

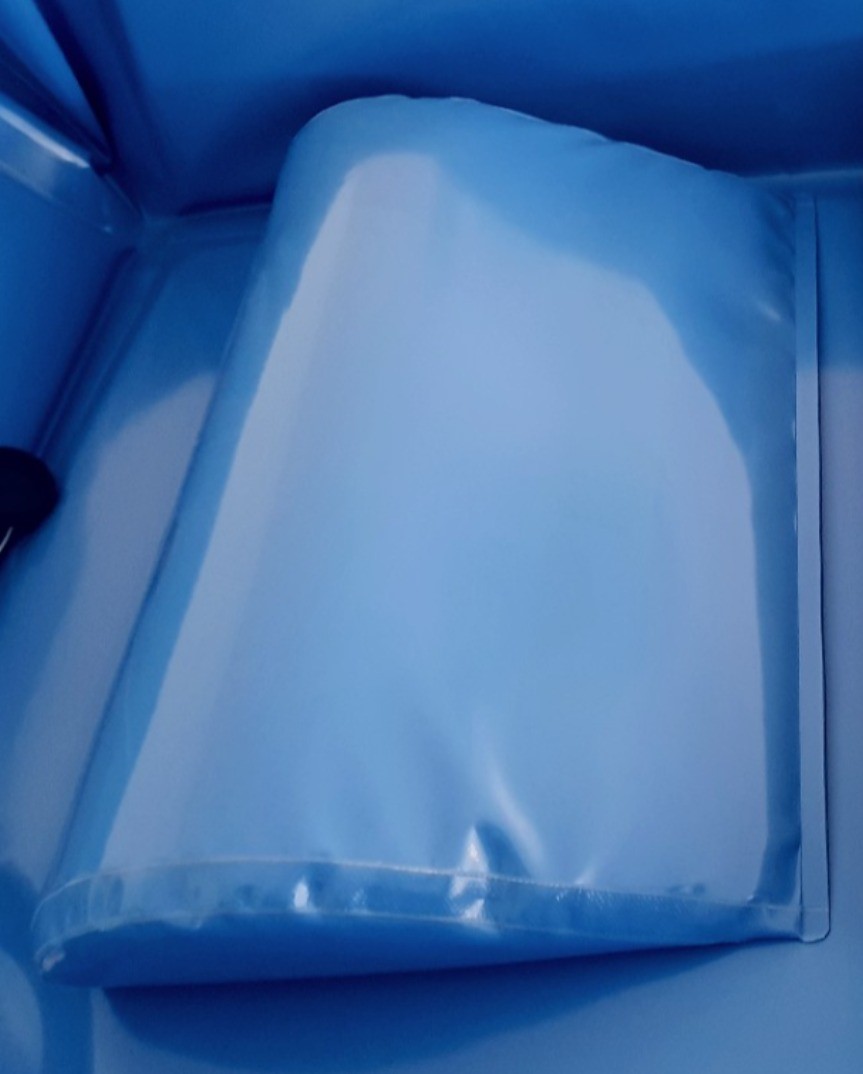

Mattress and head pillow in blue color
Well proven high quality durable mattress designed to last for years made in Flame retardant PVC material.
Easily removable from the shower trolley.

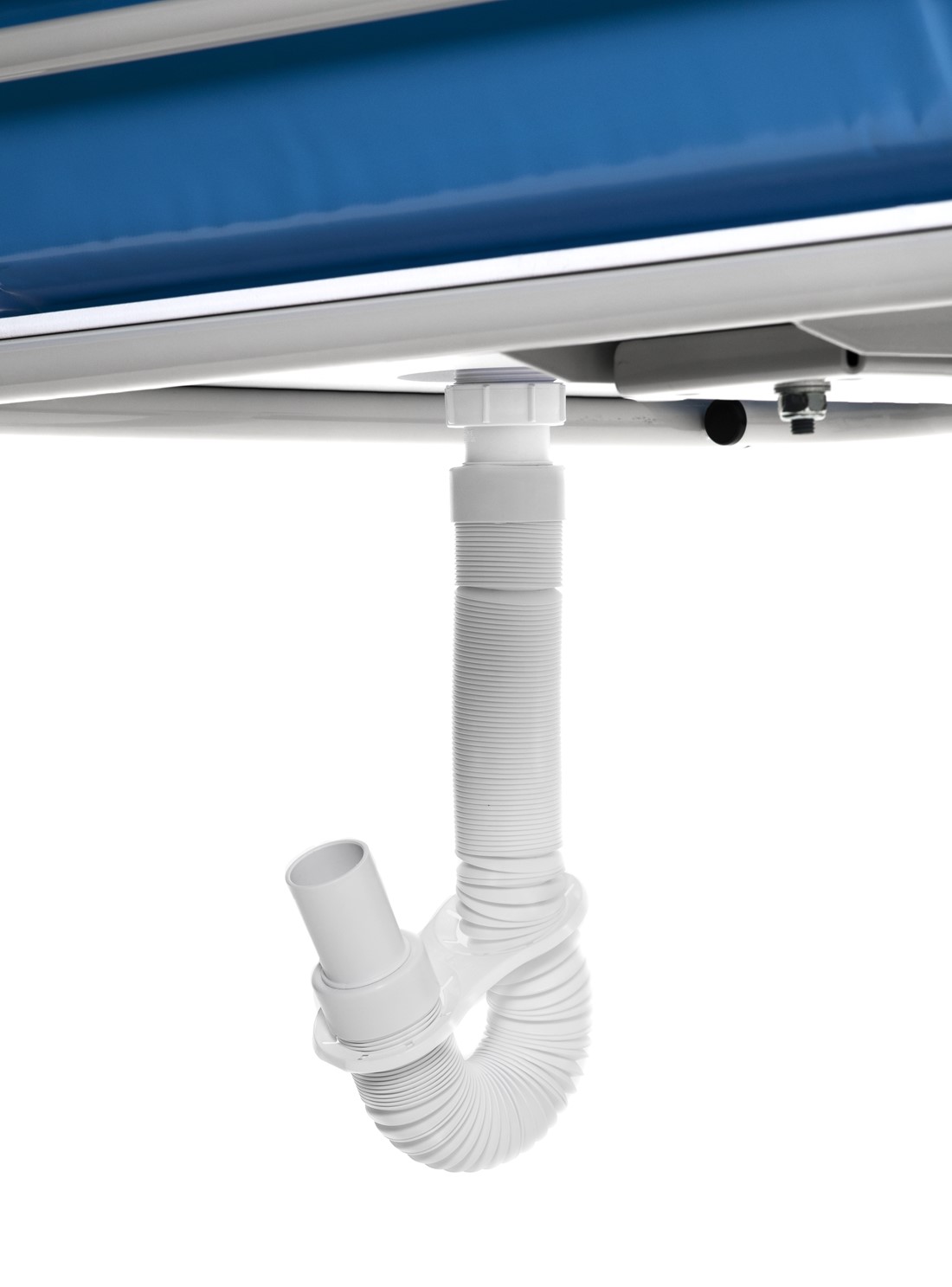

Flexible drainage hose, L = 1 m
For Caregiver
Basic specifications
Safe Patient Handling
The product is height-adjustable for caregiver's ergonomic use and is specifically designed and manufactured for safe in-patient hospital use.
Height adjustable

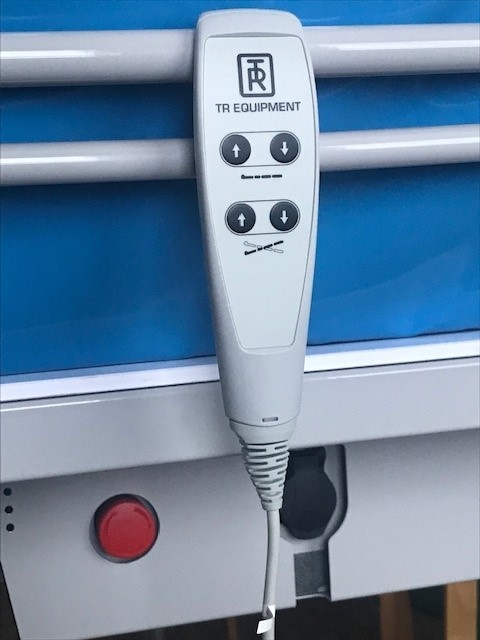

Quiet and smooth height adjustable motion from the hand control between 600-900 mm.
Audible tone when battery is running low.

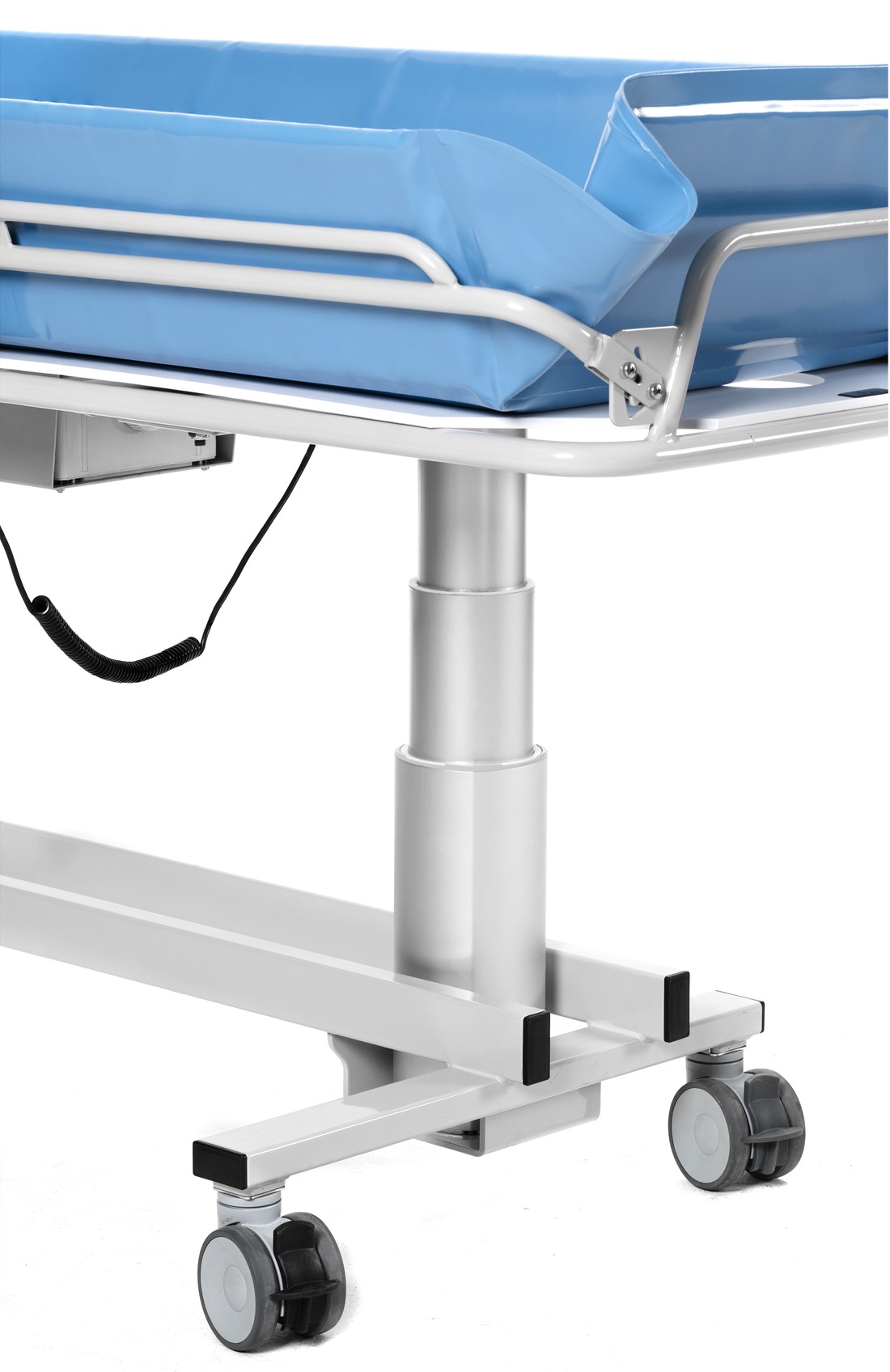

Side mounted column
Side mounted column design to allow the shower trolley stretcher to overlap the bed for a safe and easy patient transfer.
Clean design and easy access
The TR 3200 is designed for easy cleaning and ease in mobility and transfers.
Foldable and flexible side rails
Foldable side rails for efficient and safe patient transfer and transport. Side rail on bed side of the shower trolley folds to horizontal position. Side rail on attendant side folds all the way down for easier access to the patient.
The side rails can be pressed together when travelling through narrow dorrways.
Tilt adjustment
By using the hand control, the stretcher can easily be tilted (+-4°) i to the "Trendelenburg" position to alleviate person in shock. The tiliting function also eases drainage.An audiable tone sounds when the stretcher is level.
Use with TR 2810 Shower Panel
Suitable to use with the TR 2810 Shower Panel to fulfill a complete Shower system that is comfortable for both caregiver and patient.
The mattress is easily removable

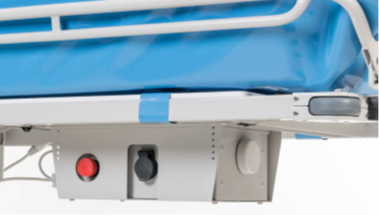

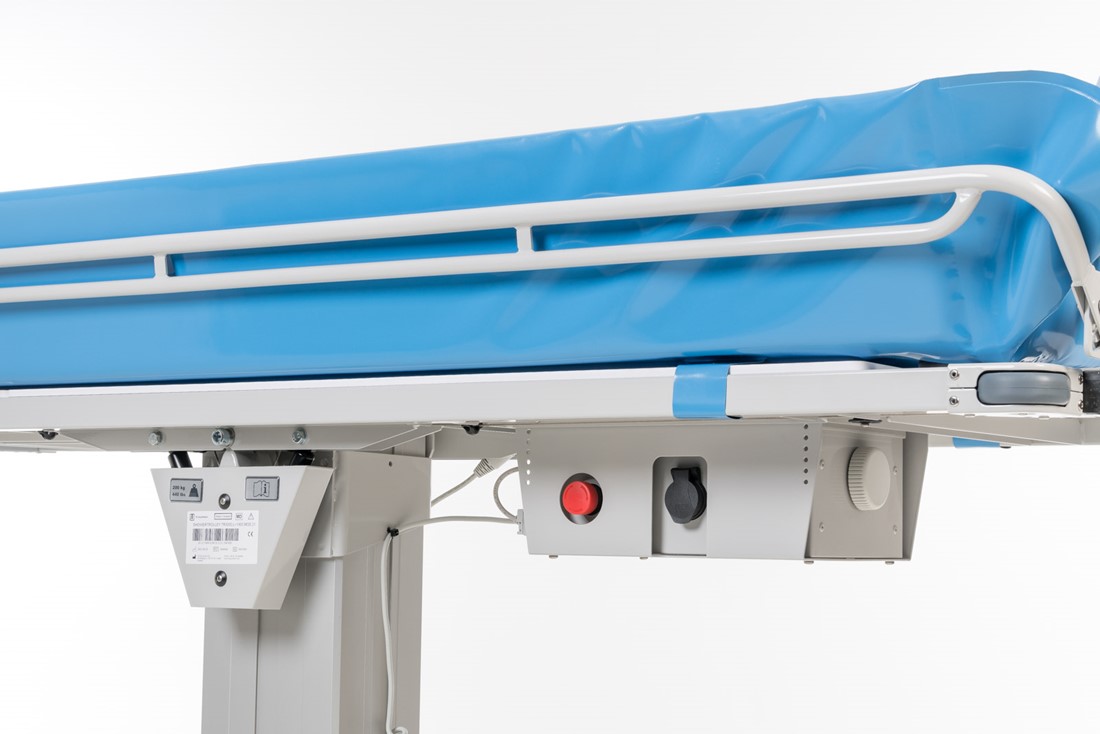

Emergency stopp
If the lifting column on the shower trolley, for some reason must be stopped immediately and it
doesn’t help to stop pressing the hand control, press the Emergency stop on the battery box.
The Emergency stop will cut the power supplied to the lifting column.
Accessories / Options

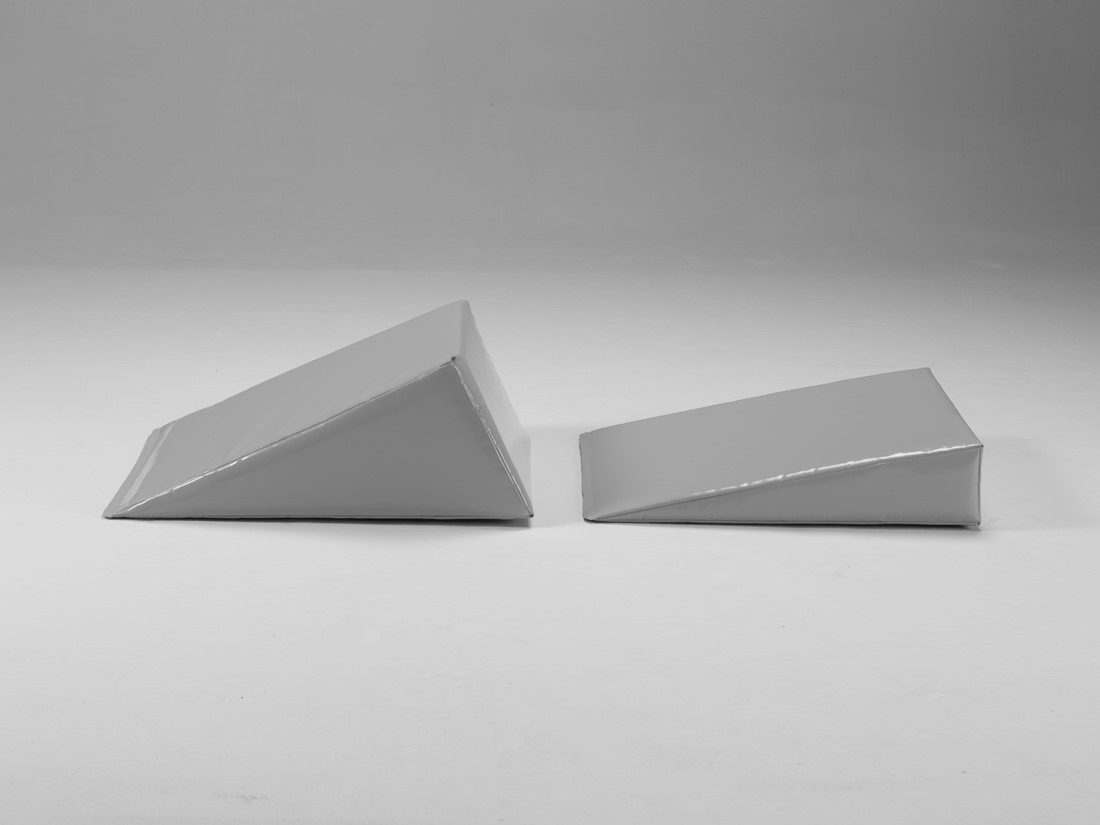

Backrest wedge pillow
15° comes in Blue or Grey and fits all TR3200 models.
30° comes in Grey and can only be used TR 3200 L

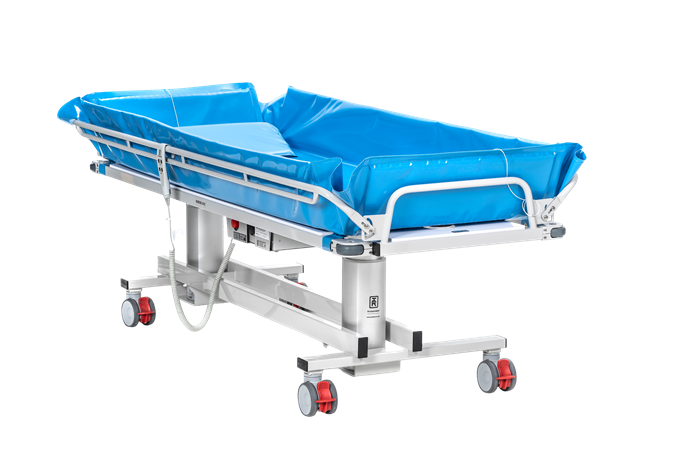

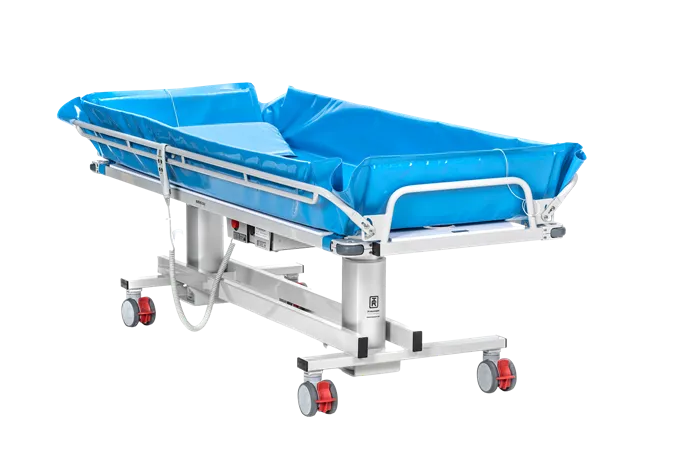

Removable rechargeable battery solution
Model TR3000 R with 24 VDC, 4 Ah (Lithium, rechargeable) battery
Color, head pillow and mattress
All models can be delivered with grey head pillow and mattress instead of blue (standard)
Straight steering castors
Standard trolley comes with 4 braked castors.
Longer drainage hose, 2,5 m
Instead of 1 m as standard.
Fastners/straps for attachment on mattresses to side rails
