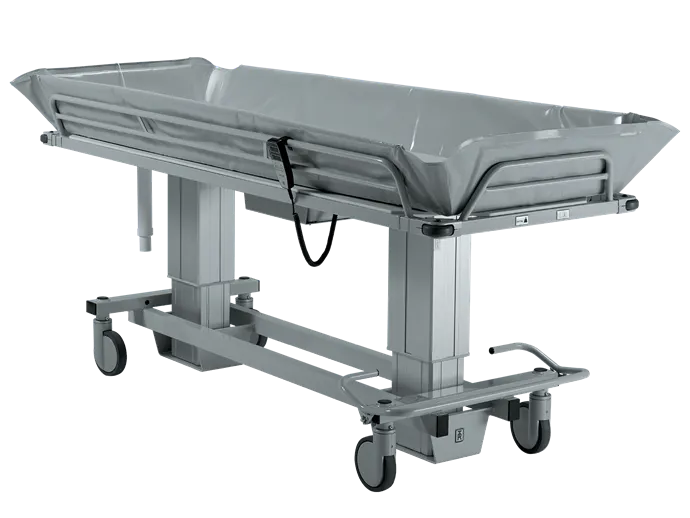

BARIATRIC SHOWER TROLLEY TR 4200
Offers safe, efficient and dignified care for plus size patients.
Battery operated bariatric shower trolley that meets all your hygiene and work safety related needs working with assisted showering.
Shower trolley with lots of power and plenty of body space designed for a Working Load Limit of 270 kg/600 lbs. The shower trolley is suitable for many different purposes besides showering, for example dressing and nursing: the possibilities are endless.
TR4200 comes delivered ready for use with a mag code battery charger, mattress, head pillow and 1 m flexible drainage hose.
Features
Standard Equipment
Measurements (mm)
Product measurements document available for download at the bottom of the page.
Measurements (inch)
Product measurements document available for download at the bottom of the page.
Maximum patient weight of 270 kg / x lbs
Hand control
The hand held control operates the power tilt in both directions and raises and lowers the trolley.
Corner bumper wheels
The stretcher has rubber bumper wheels on all four corners to protect waals and doorways.
Large castors
Large castors (150 mm) for convenient and easy transport of the shower trolley.
Soft flame retardant mattress and pillow
Drainage at the foot end
The chassis and sub-frames are made of powder coated stainless steel
High capacity batteries
On board, high capacity, rechargeable batteries (24 V, 14 Ah) to be charged via main supply. Magnetic battery charger connection for safety and ease of use.
Flexible drainage hose L=1 m
For Caregiver
Basic specifications
Safe Patient Handling
The product is height-adjustable for caregiver's ergonomic use and is specifically designed and manufactured for safe in-patient hospital use showering both bariatric and taller patients.
Height adjustable
By using the hand control, the stretcher easily and quietly raises by two powerful actuators and enables a comfortable and ergonomic working position for the caregiver. The adjustment height is between 535-835 mm.
Tilt adjustment
By using the hand control, the stretcher can easily be tilted (+-4°) to the "Trendelenburg" position to alleviate a person in shock.
The tilting function also eases drainage.
An audible tone sounds when the stretcher is level.
The mattress is easily removable
Centralized break and straight steering
Convenient single foot control for brakes on all four castors and straight steering.
Foldable and flexible side rails
Shower Trolley with 180 degrees foldable side rails in stainless steel that locks into position.
The flexible side rail gives the caregiver easier access during patient transfer, they can also be pressed together when passing through narrow doorways.
Transfer and operation
The bariatric Shower Trolley is easy to operate, clean and maintain and offers efficient, safe and dignified patient transfer, transport and showering.
Use with TR 2810 Shower panel
Suitable to use with TR 2810 Shower panel to fulfill a complete shower system that is comfortable for both caregiver and patient.
Accessories / Options
Color, head pillow
All models can be delivered with grey pillow instead of blue (standard).
Backrest wedge pillow
Backrest wegde pillow available in 15° or 30°angle.
Use this pillow to incline the patients back for comfort and safety.
Can be delivered with blue mattress instead of standard grey
Fastners/straps for attachment on mattresses to side rails
Long flexible drainage hose, L = 2,5 m
Instead of standard L = 1 m
Scale
TR 4200 Shower Trolley can be equipped with a scale. Scale solution is provided and mounted by third party scale company.
