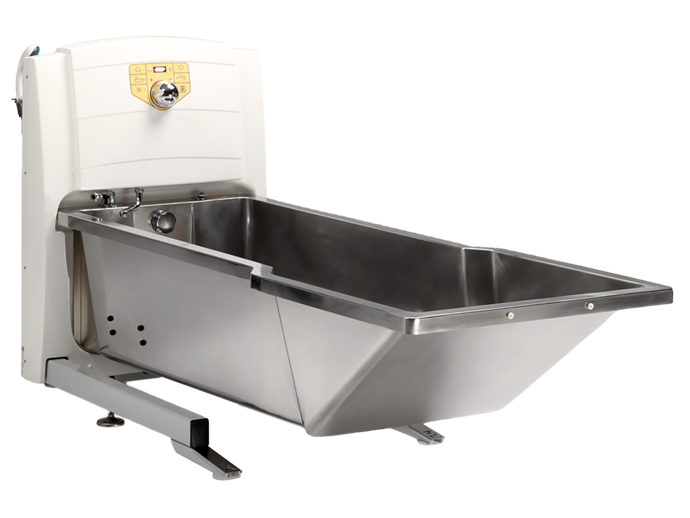

BATHTUB TR 900 Stainless Steel
The TR900 Stainless Steel Bath, designed for burn treatment, features an adjustable height for optimal comfort and efficiency.
The bath section is fabricated from highly durable stainless steel and therefore designed to enable the care and treatment of burn injuries, being both suitable for the use of specific chemical cleaning agents and also easy to clean and disinfect after each patient use.
Suitable for healthcare staff in the burn center who have specialized training in care, treatment, and rehabilitation of burn injured patients.
The stainless steel burn care bath is available with all standard TR 900 fiberglass panels, both manual and auto-filled models.
Ergonomically designed, and the clean look also makes bathing relaxing and enjoyable.
Features
Standard Equipment all models

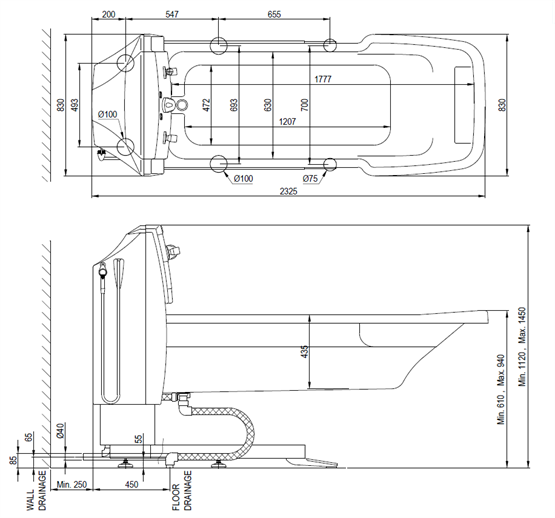

Measurements (mm)
Product Measurements documents available for download at the bottom of the page.

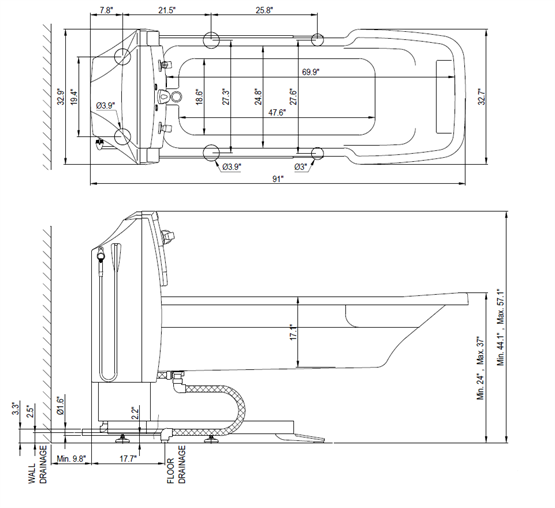

Measurements (inch)
Product Measurements documents available for download at the bottom of the page.
High quality RADA mixer, preset at 43 degrees to avoid scalding
Maneuver panel for TR900 A
Removable foot support, adjustable in three positions
Standard height = 95mm
High quality LINAK actuators
Hand shower with 2,4mm long hose
Overflow control and pop-up drainage incl. drainage hose
Reinforced hoses for water installation
Hot- and cold-water Installation kit
(2 check valves and 2 ball valves)
Installation kit for extra cold water
(Only TR900 SS models with cleaning)
Foot support
The movable foot support may be placed in three positions.
H = 95 mm (Standard equipment)
H = 145 mm (Option)
Maximum patient weight of 150 kg/330 lbs
For Caregiver
Basic specifications
Safe Patient Bathing
The product is designed for caregiver's ergonomic use.
Stainless Steel Bathtub
(EN1.4301/233)
Corrosion and chemical resistant bathtub suitable for tough environment and advanced treatment.
Height adjustment
Height adjustment for an ergonomic work enviroment for the caregiver.
Lowest position 610 mm from the floor up to the bath rim.
Highest position 940 mm from the floor up to the bath rim.
Clean and hygienic design
The chemical resistant tub with easy-to-clean surface guards against bacterial growth inside and outside giving a high standard of hygiene.
Easy operation
Easy to operate and maintain thanks to simple and obvious controls.
Operating panel for a TR900 SS
Keyhole shaped bathtub
Long, key hole shaped bathtub allows more space around the upper body so that the resident can be fully covered with water. It also offers the caregiver easy access to the bathtub from three sides.
Shower and cleaning hoses
Shower and cleaning hoses clearly colour marked and out of reach and sight for resident for saftey.
Cleaning hose (TR 900 C SS):

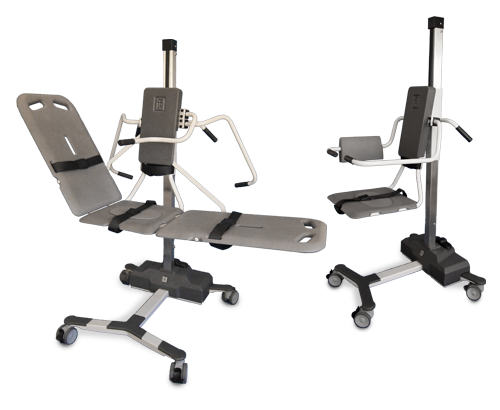

Use with TR Patient Lifts
Suitable to use with the TR 9650 Bath Lift System or other Patient Lift, mobile or ceiling hoist systems.
Options For Patient
Head pillow
Bathing is comfortable and safe thanks to head pillow (Option).
Whirlpool
The Whirlpool system generates a gentle massaging effect that stimulates blood circulation that may ease muscle tension.
Local treatment
Option available for all TR 900 models with whirlpool.
All wellness options can be configurated with cleaning and autofill functions
Options / Accessories
Autofill system (TR 900A SS)
Autofill function rapidly fills the bathub and makes the complete bathing cycle more efficient and minimizes the heat loss.
Cleaning/Disinfection system (TR 900C SS)
Separate cleaning system with safety on and off valves to ease cleaning of Bath and other equipment.
Emergency lowering system
The emergency lowering function is activated at power failure and gives you the possibility to lower the bath by pushing a button inside the bath.
Disinfection fluid flowmeter (TR 900C SS)
Flow meter control for dilution of cleaning solution. Only for TR 900 models with cleaning.
Rapid filling
The 3/4" (22mm) thermostatic mixing valve, the double filling spouts give a good water flow and short filling time.
TMV 3 thermostatic mixer (UK)
TMV3 approved thermoscopic mixers for the UK market with separate maximum themperatures for bath fill and shower water.
Product only available at UK retailers.
Risk 5 gantry (UK)
The tub can be equipped with gantry for shower and cleaning hose to comply with UK regulations regading Category 5 back flow prevention.
Product only available at UK retailers.
Transport wheel beam with ramp
For easier handling during installation.
