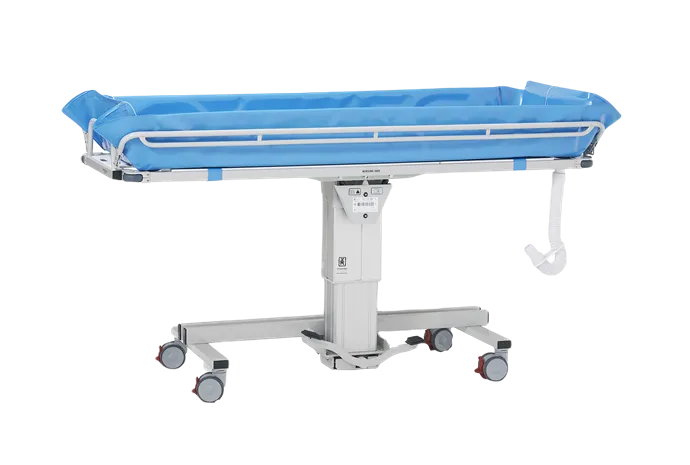

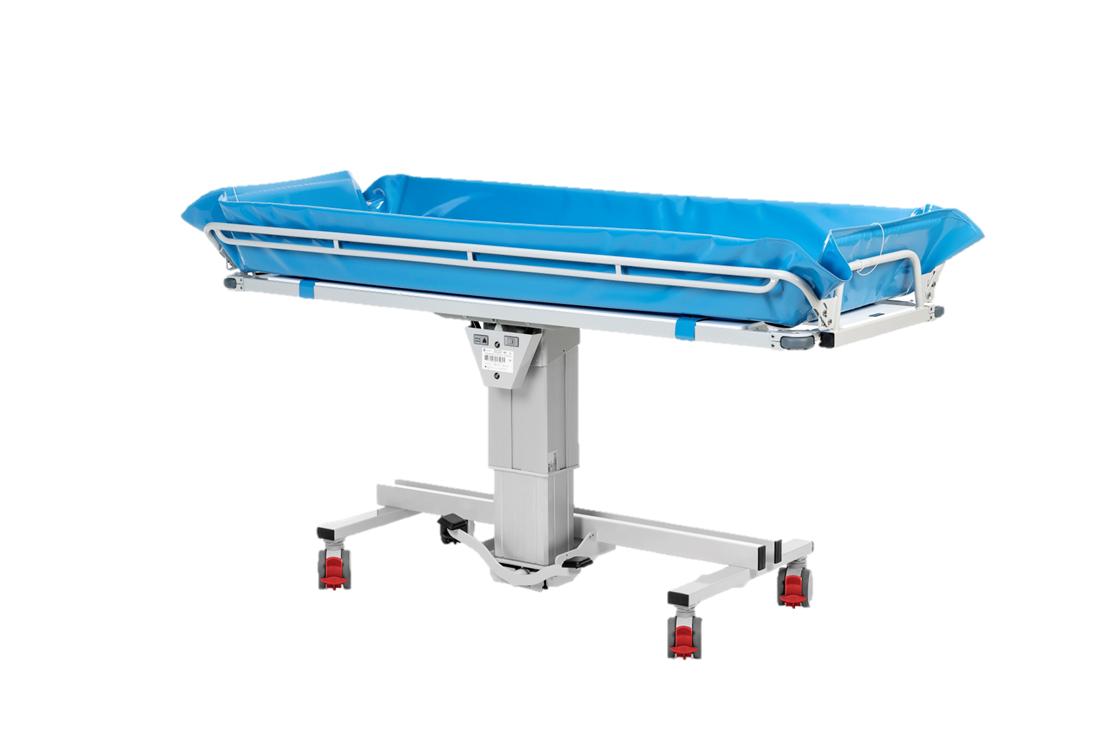

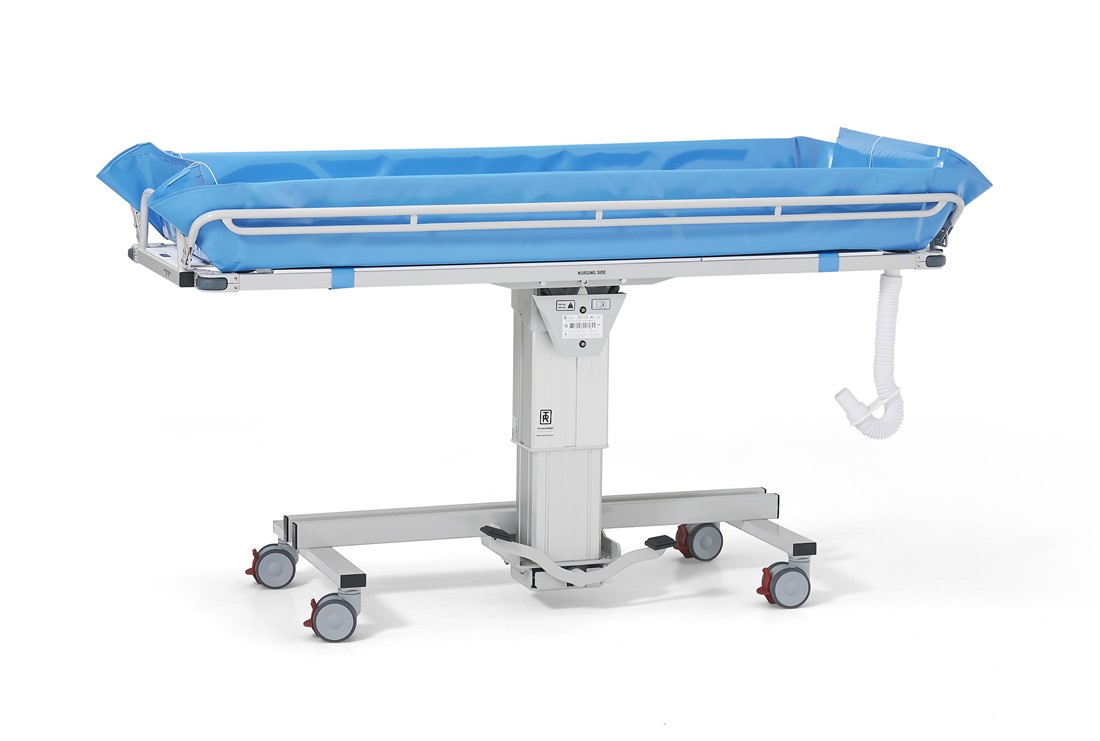

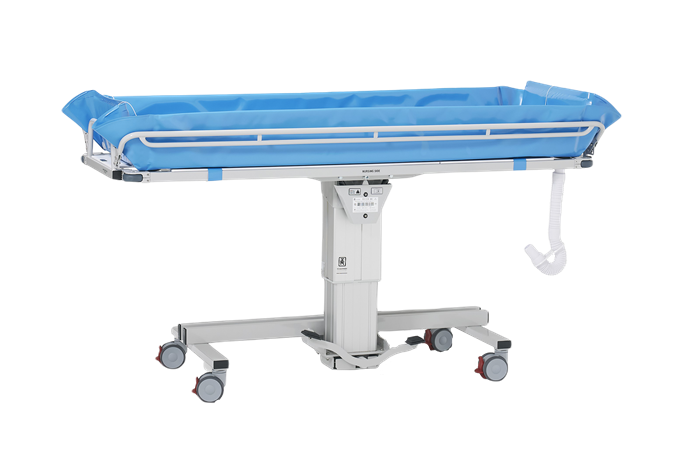

SHOWER TROLLEY TR 2000 Mod 21
Multi-tasking hydraulic shower trolley with endless application possibilities.
The TR 2000 hydraulic foot operated shower trolley (max patient weight 200 kg/440 Ibs) is unique with its side mounted column allowing the trolley stretcher to overlap the bed further for a safe and easy patient transfer.
The trolley drains at both ends allowing the person to be positioned in either direction, an invaluable feature for the caregiver.

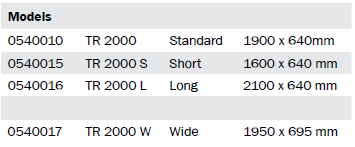

The TR 2000 comes in four sizes:
All four models come delivered ready for use with mattress, head pillow, 4 braked castors and 1 m flexible drainage hose.
Features
Standard Equipment

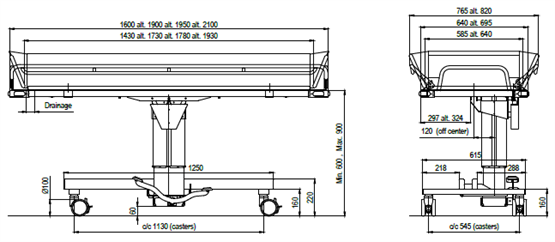

Measurements (mm)
Product Measurement document available for download at the bottom of the page.

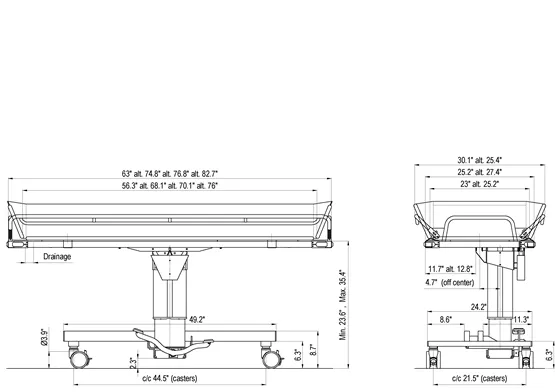

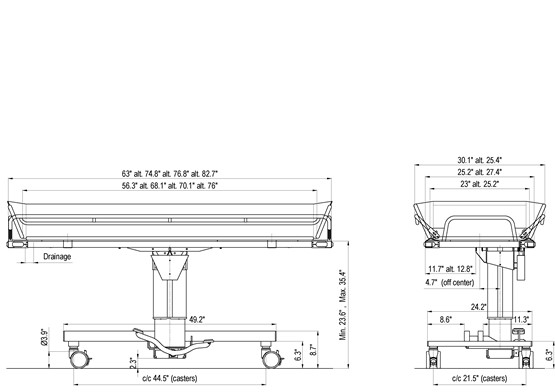

Measurements (inch)
Product Measurement document available for download at the bottom of the page.
Maximum patient weight of 200 Kg/ 440 Ibs

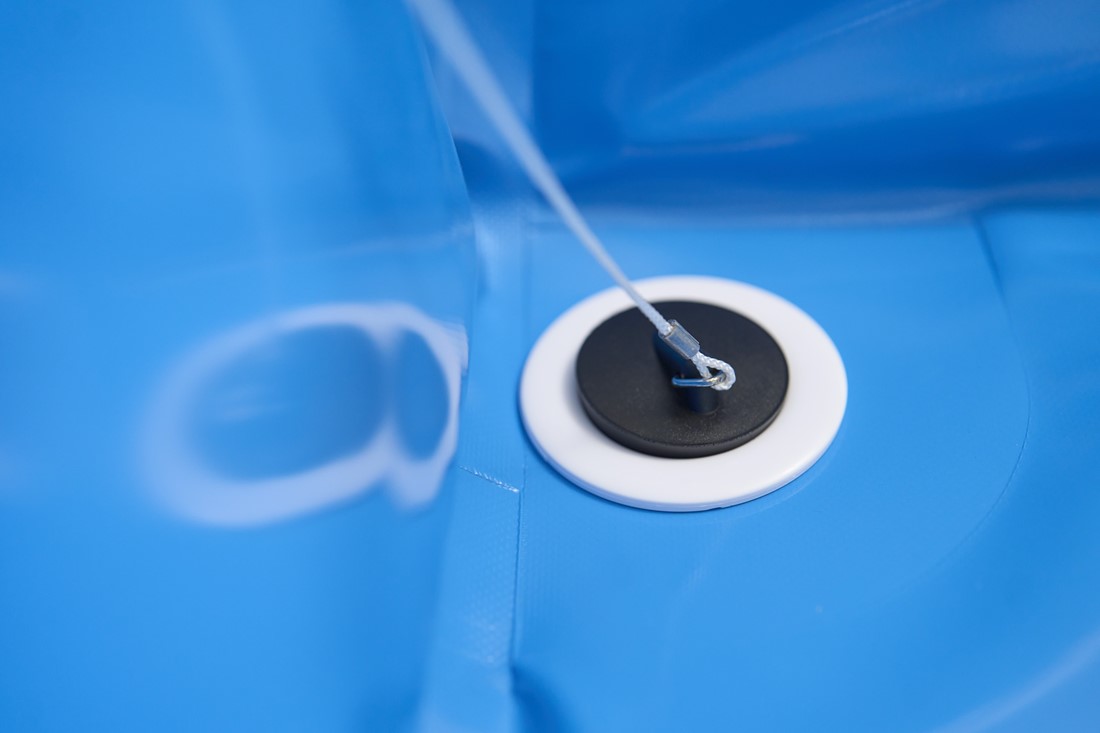

Dual drainage offers easy change of designated head end
Floor clearance at 160 mm to enable floor lift transfers
The chassis and sub-frames are made of powder coated stainless steel
Proven choice of durable high-quality material guarantees a low cost of ownership.

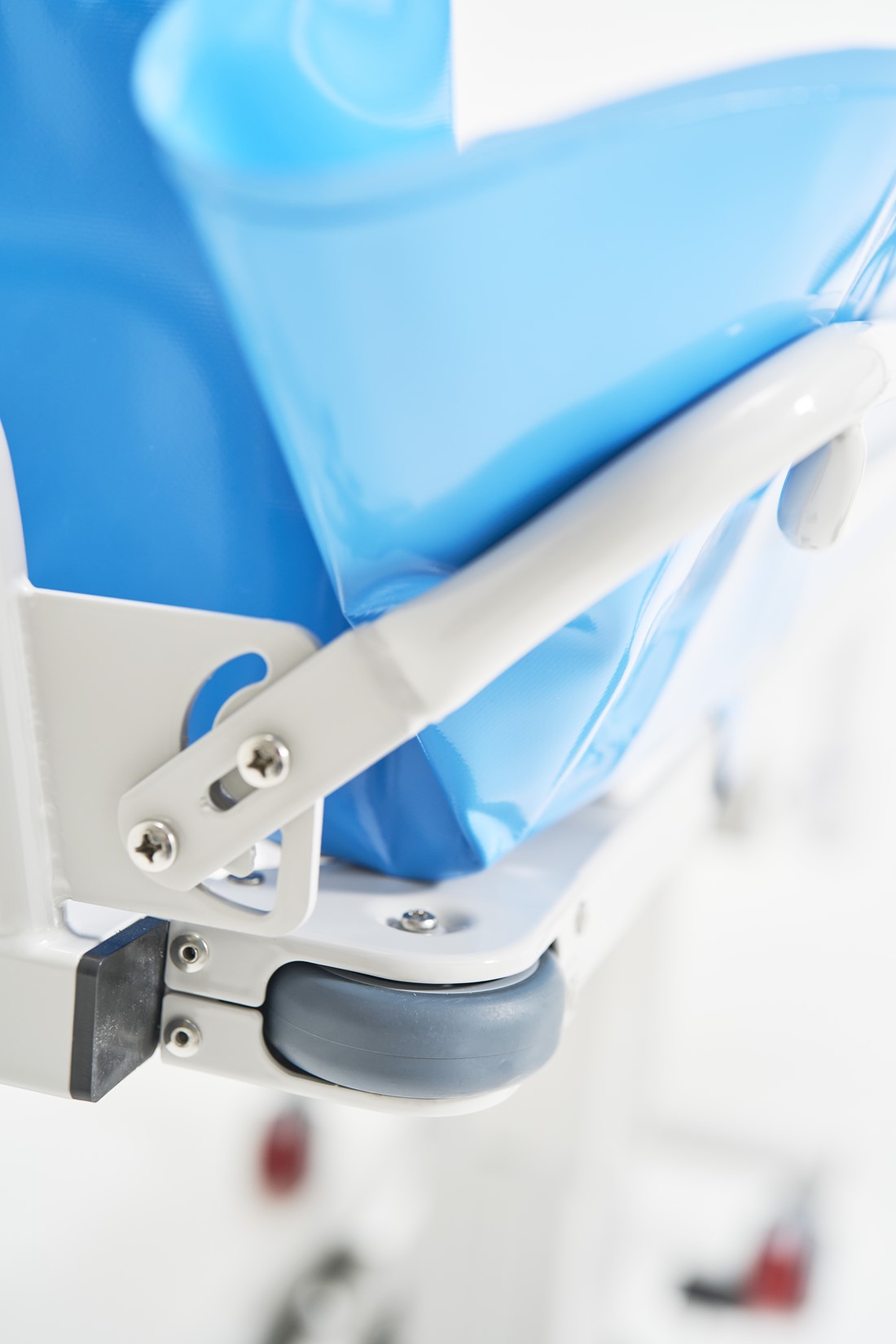

Bumper wheel protection
The shower trolley has rubber bumper wheels on all four corners to protect walls and doorways.

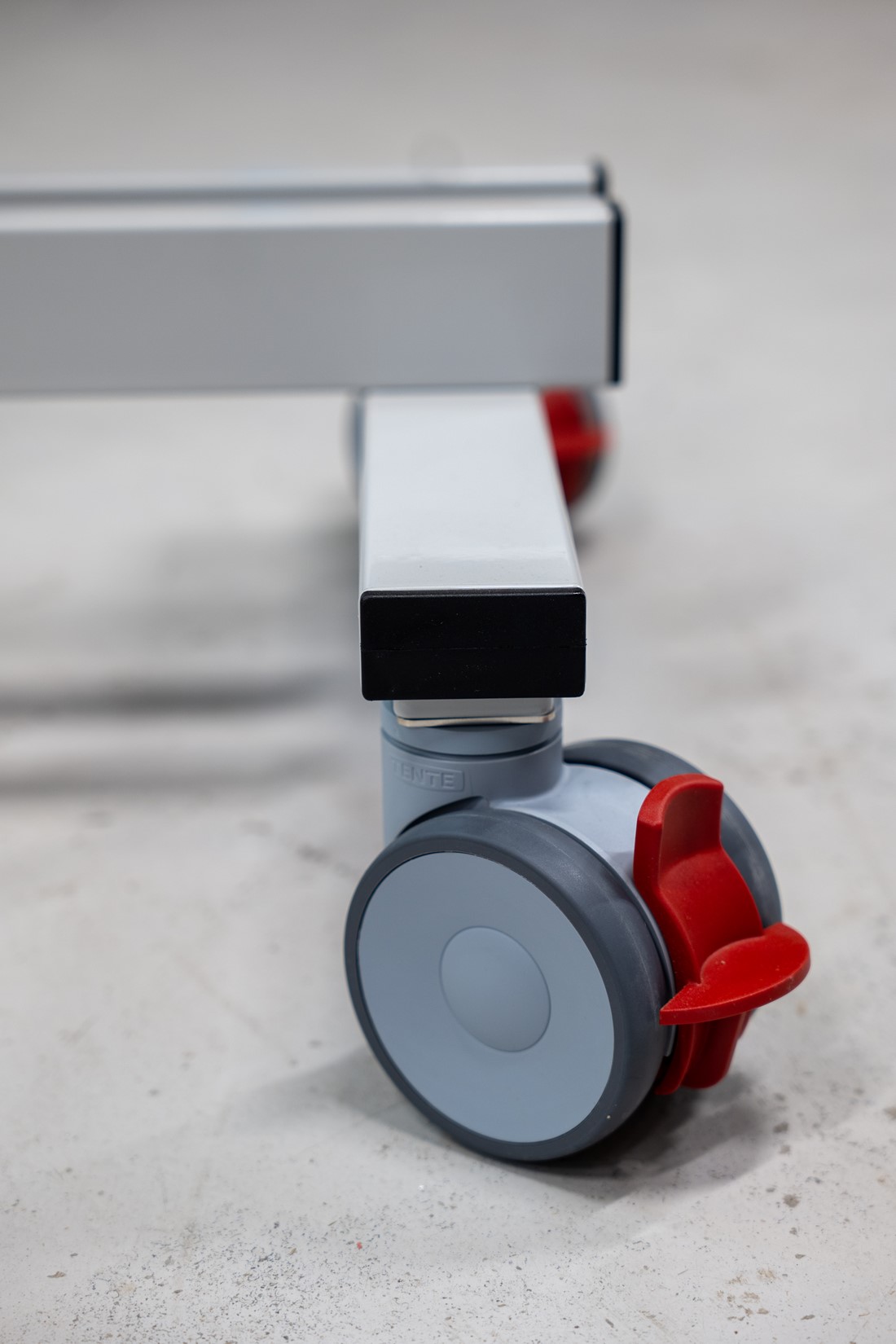

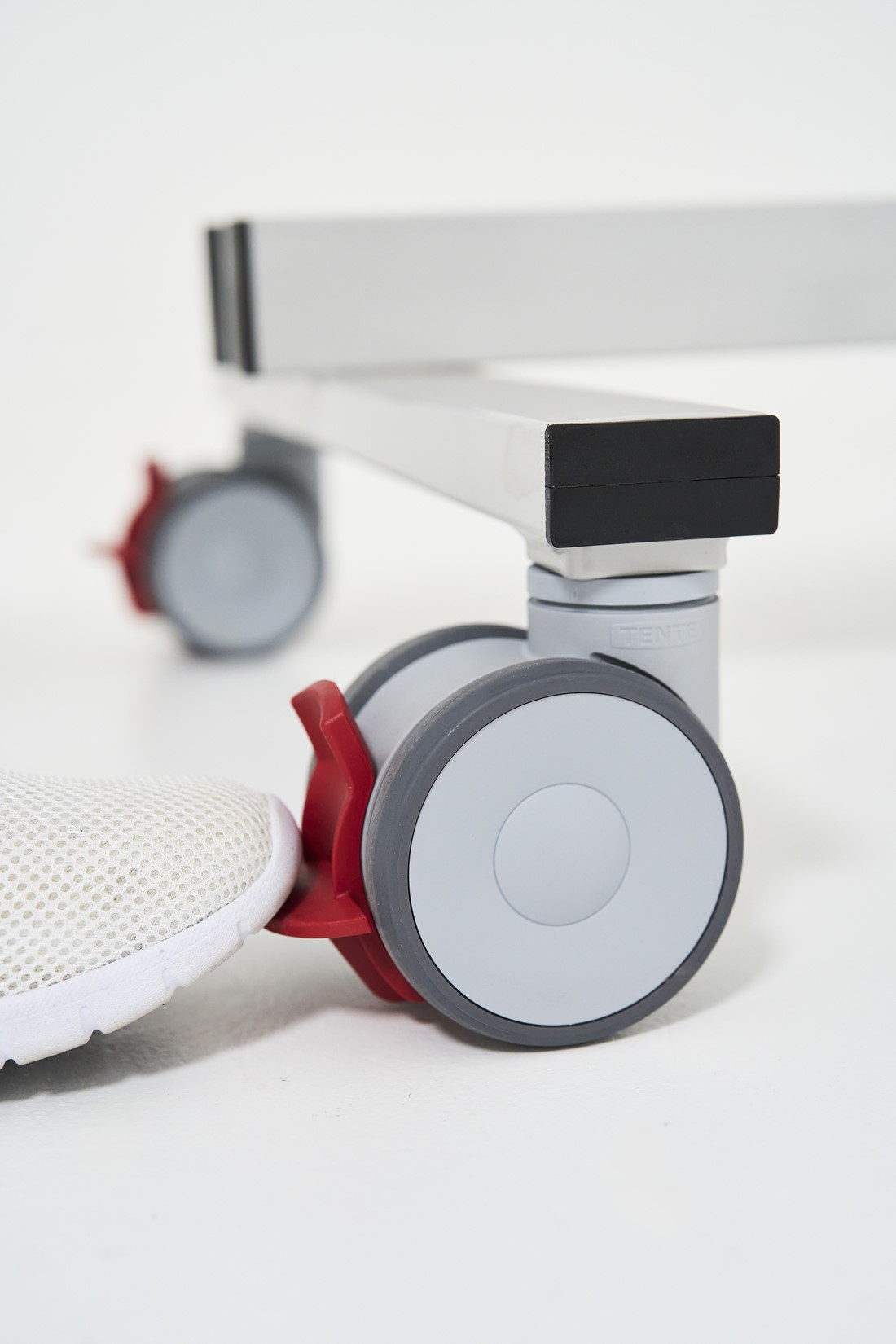

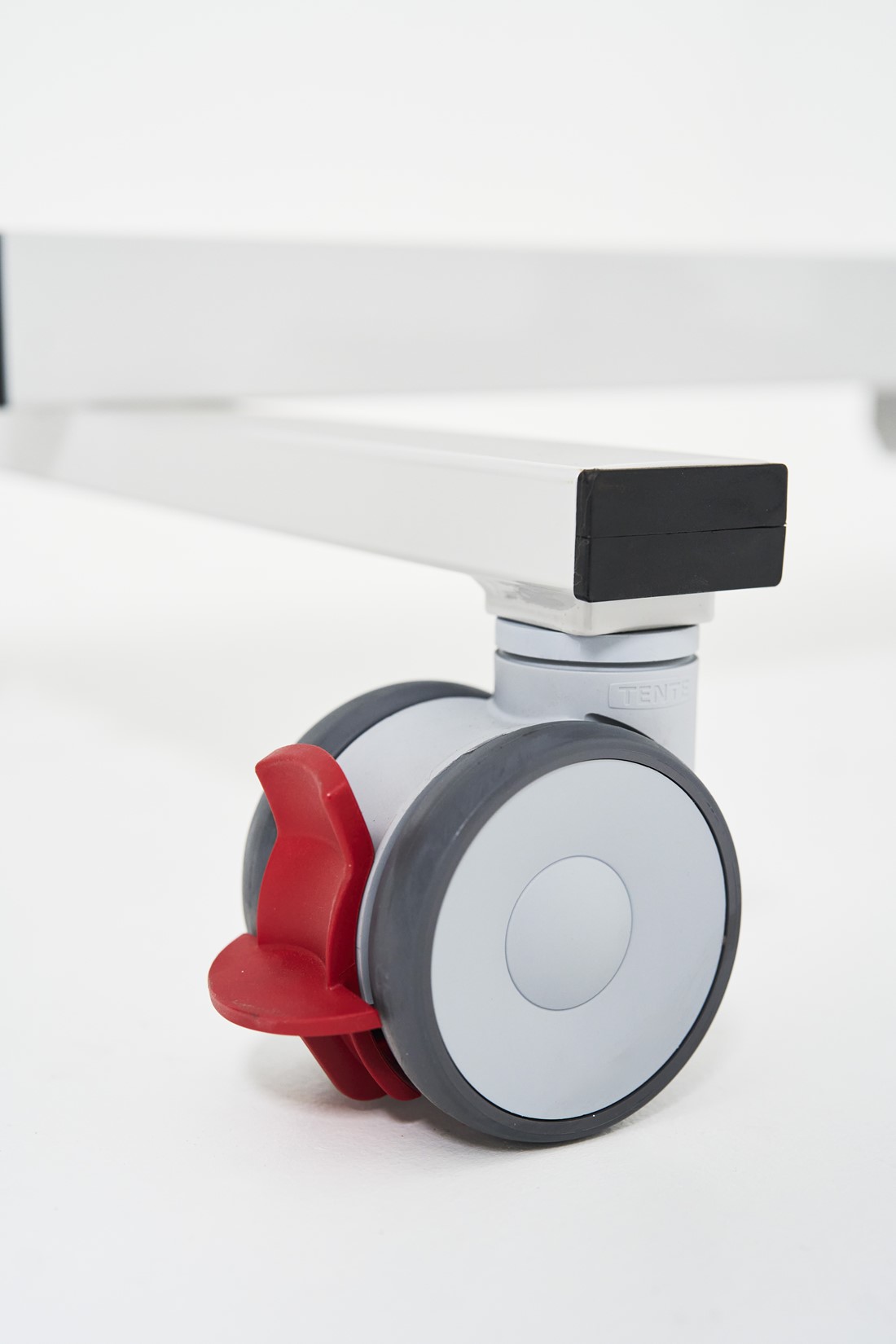

Four 100 mm braked twin castors as standard
Straight Steering castors available as an option

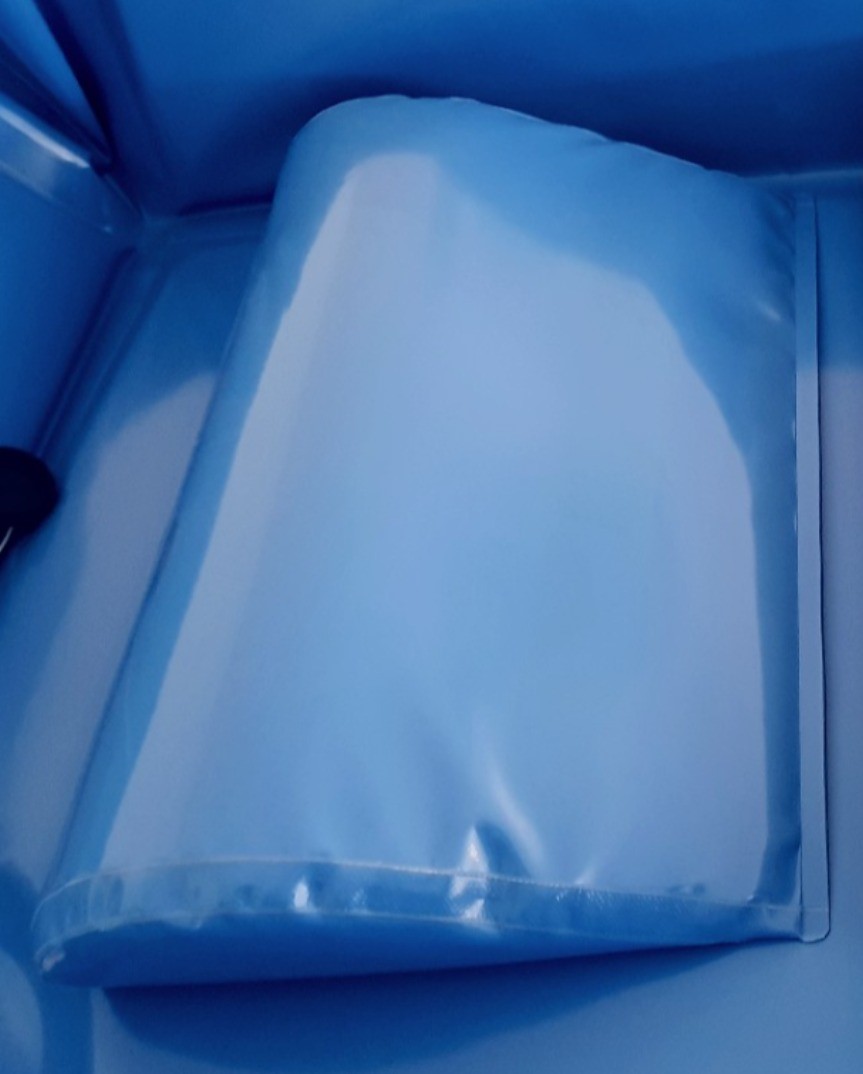

Mattress and head pillow in blue color
Well proven high quality durable mattress designed to last for years made in Flame retardant PVC material.
Easily removable from the shower trolley.

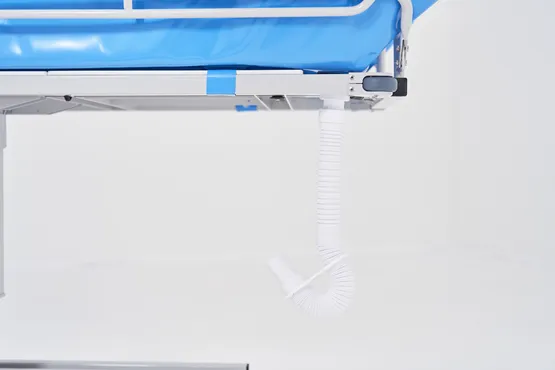

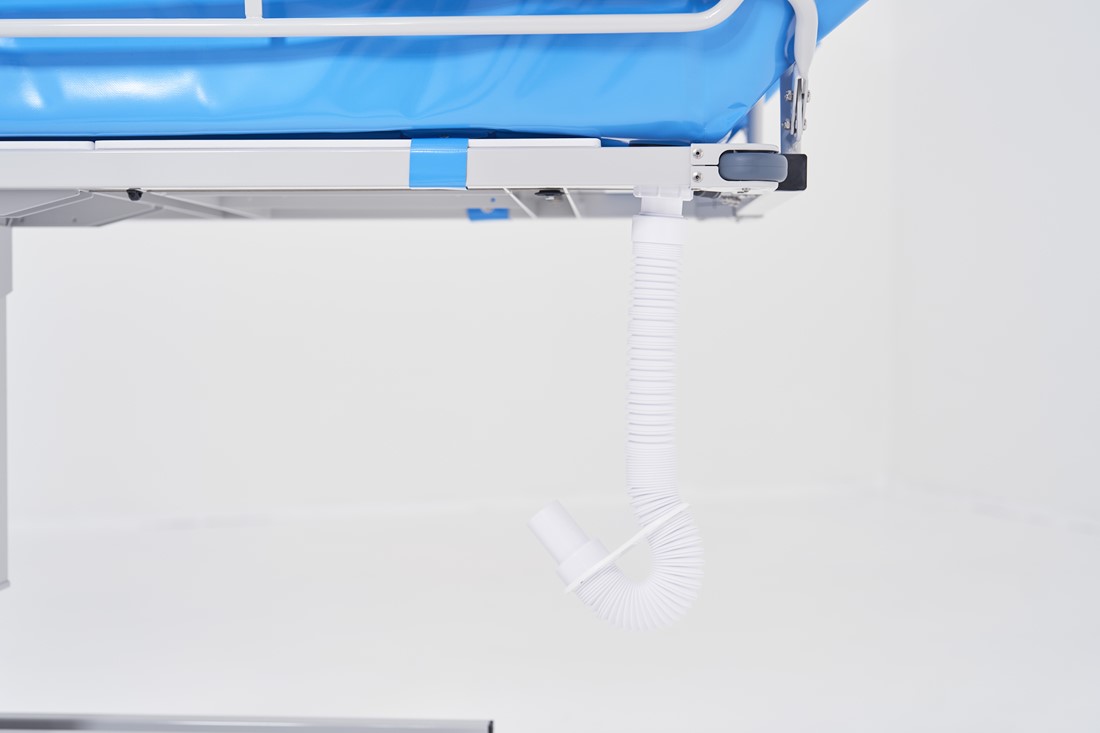

Flexible drainage hose, L = 1 m
For Caregiver

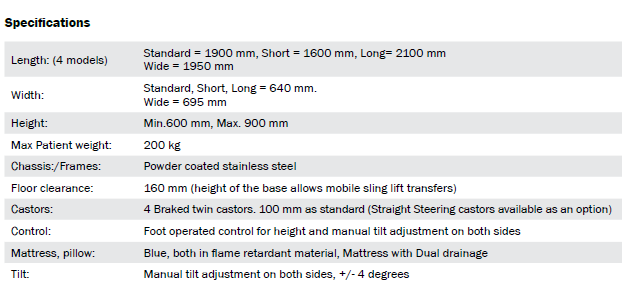

Basic specifications
Safe Patient Handling
The product is height-adjustable for caregiver's ergonomic use and is specifically designed and manufactured for safe in-patient hospital use showering both bariatric and taller patients.
Height adjustable
Handsfree foot operated height adjustment (600-900 mm) that is quiet and smooth for an ergonomic attendant work environment.

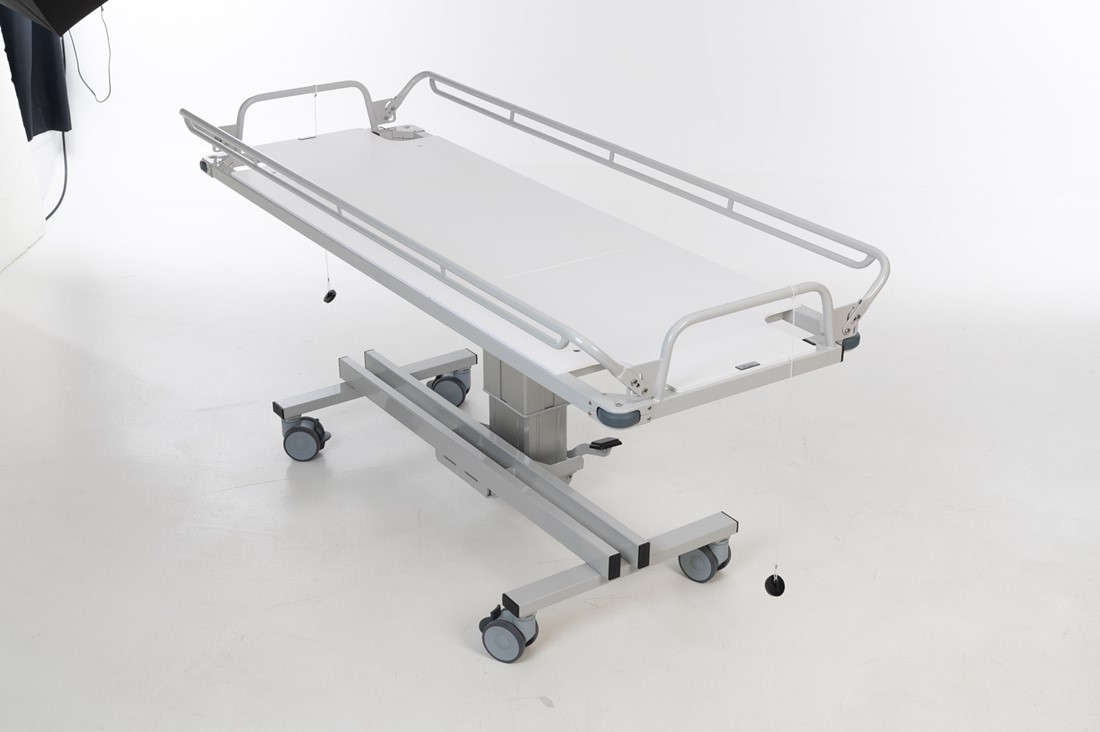

Side mounted column
Side mounted column design to allow the shower trolley stretcher to overlap the bed for a safe and easy patient transfer.
Clean design and easy access
The TR 2000 Mod 21 is designed for easy cleaning and ease in mobility
The mattress is easily removable

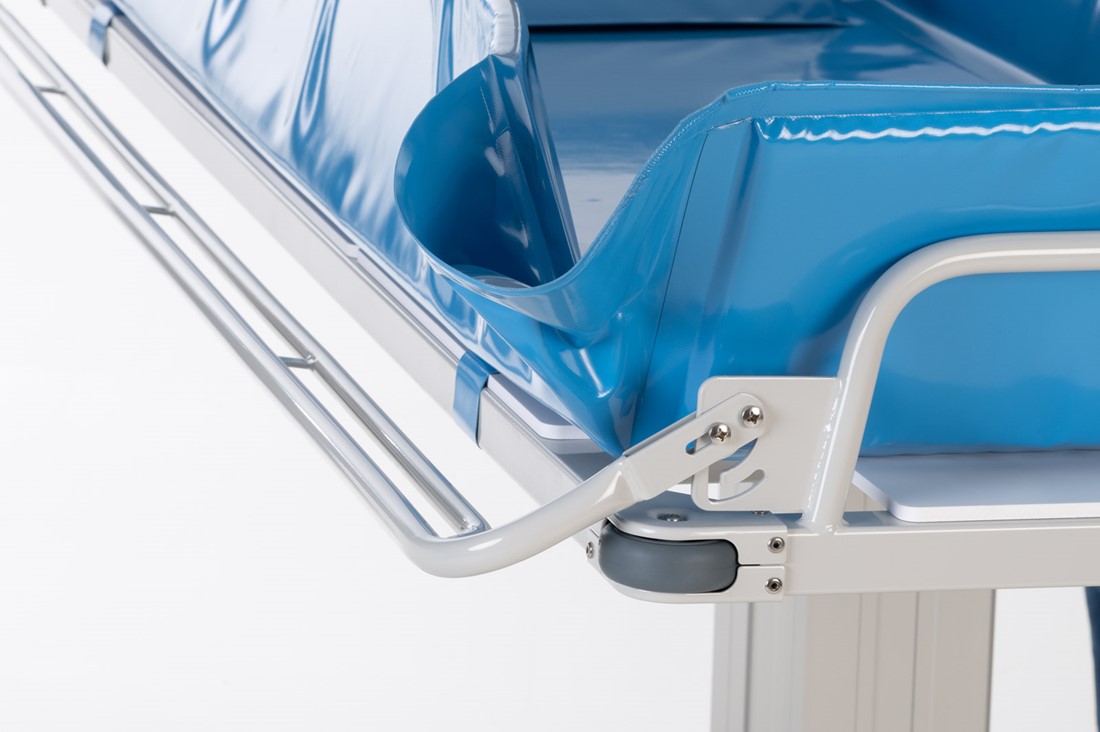

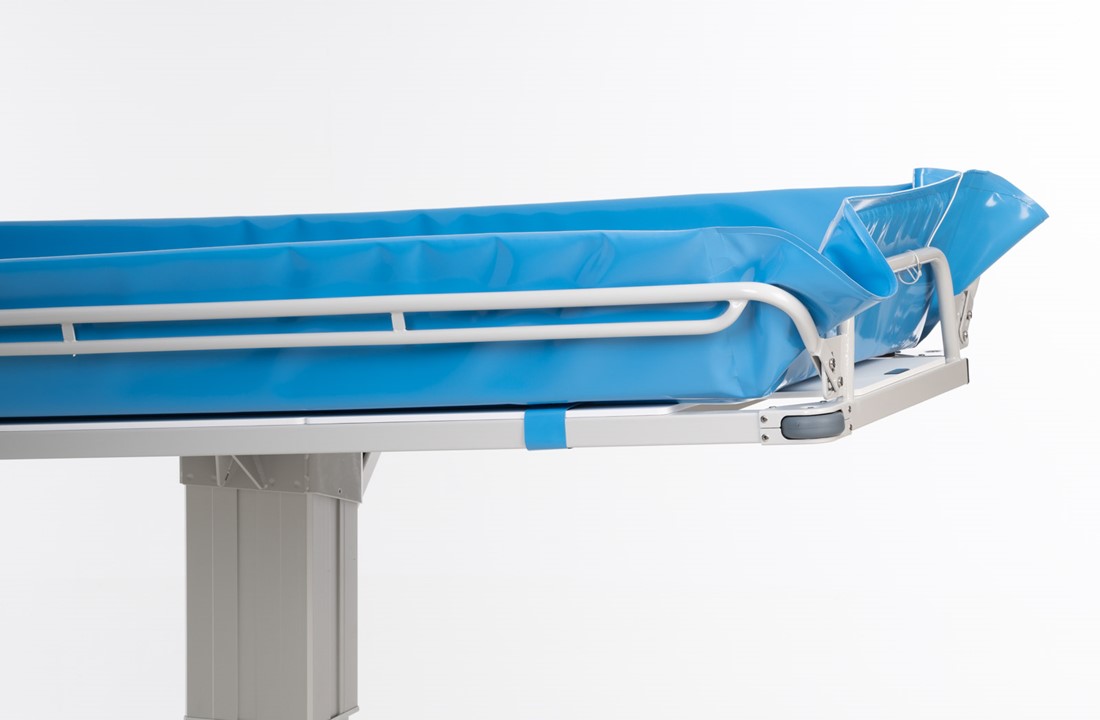

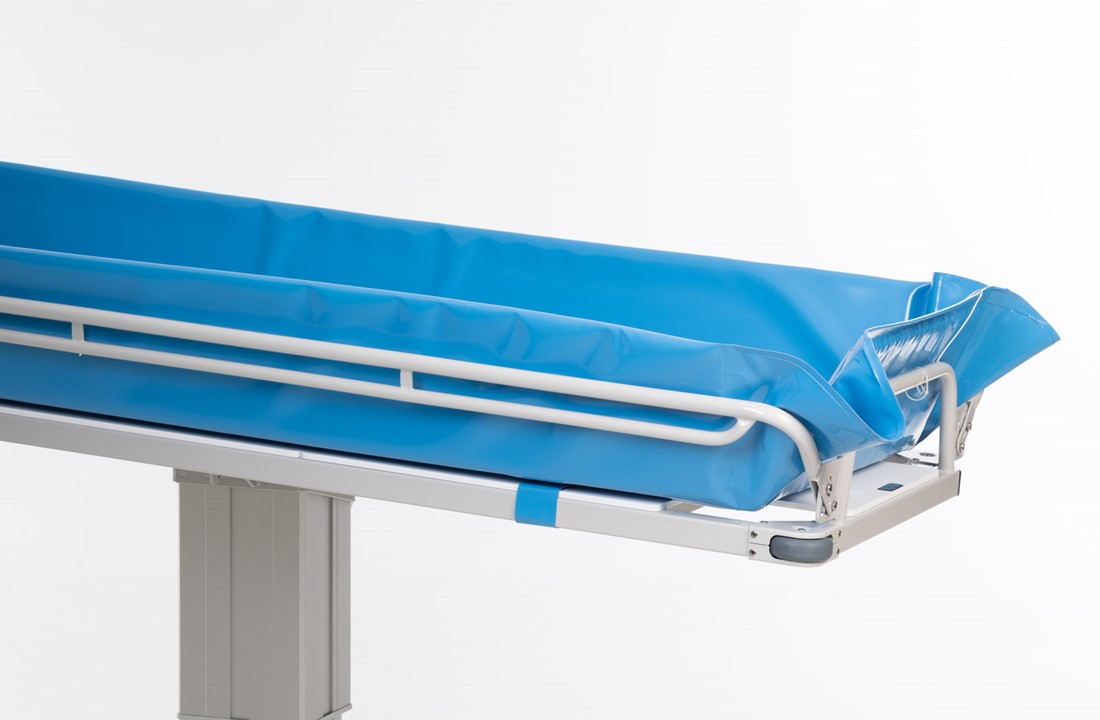

Foldable and flexible side rails
Foldable side rails for efficient and safe patient transfer and transport. Side rail on bed side of the shower trolley folds to horizontal position. Side rail on attendant side folds all the way down for easier access to the patient.
The side rails can be pressed together when travelling through narrow dorrways.
Tilt adjustment
The shower stretcher can easily be tilted (+-4°) in both directions by using the tilt control located at both ends of the Shower Trolley.
Use the tilting adjustment for easy drainage and to get the patient into "Trendelenburg" position to alleviate person in shock.

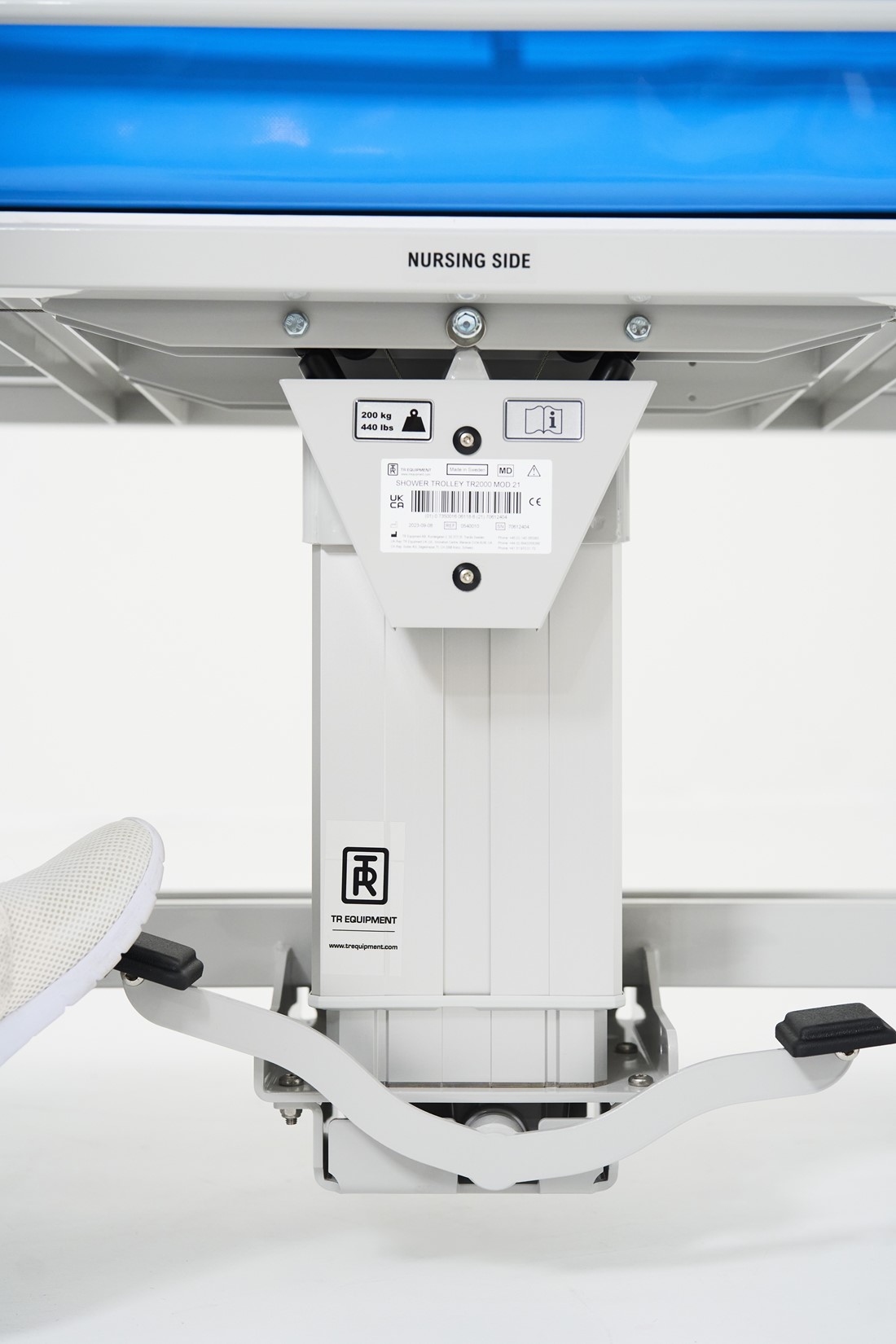

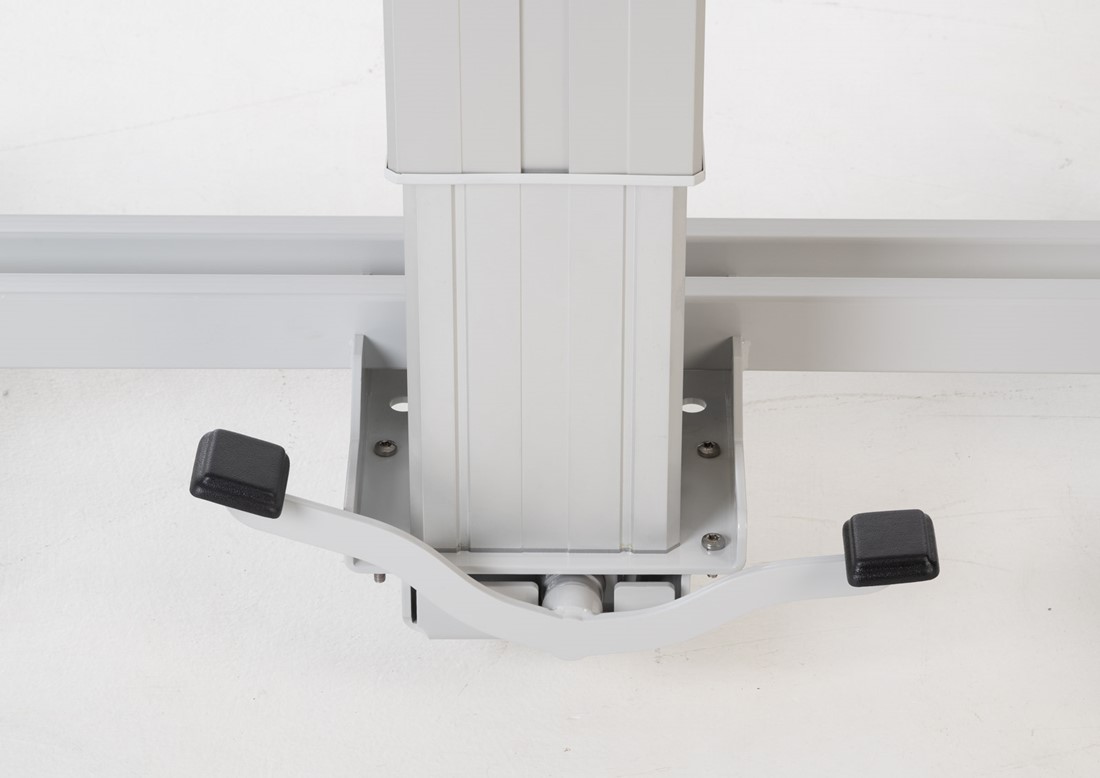

Foot control pedal
Foot operated control pedal out of reach for the resident for raising and lowering the shower trolley to assure handsfree operation for caregiver.
Use with TR 2810 Shower Panel
Suitable to use with the TR 2810 Shower Panel to fulfill a complete shower system that is comfortable for both caregiver and patient.
Accessories / Options

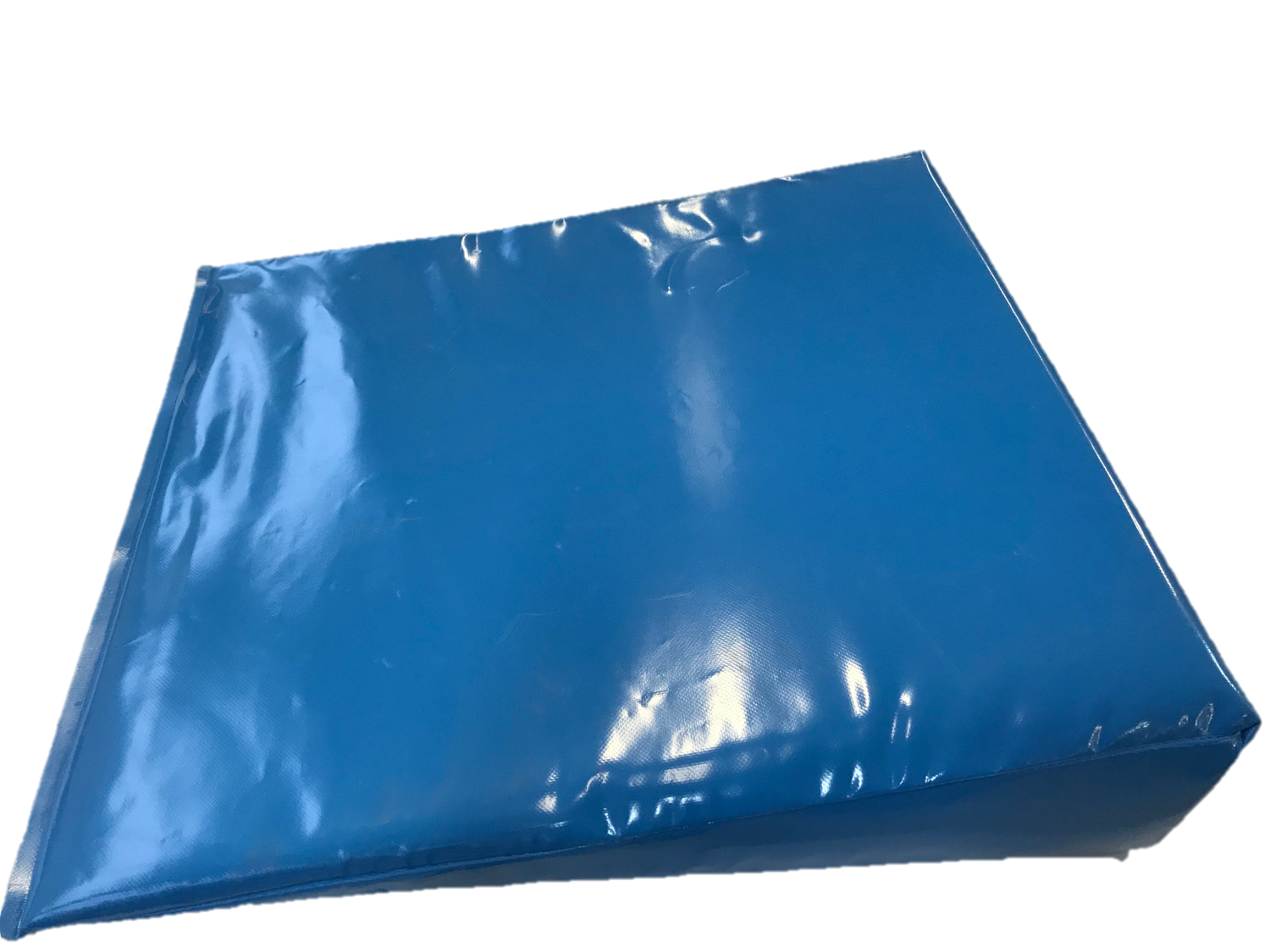

Backrest wedge pillow
15° blue and fits TR2000,TR2000 S,TR2000 L,TR2000 W
30° comes in blue and can only be used TR 2000 W
Color, head pillow and mattress
All models can be delivered with grey head pillow and mattress instead of blue (standard).
Straight steering castors
Standard shower trolley comes with 4 braked castors.
Longer drainage hose, 2,5 m
Instead of 1 m as standard.
Fastners/straps for attachment on mattresses to side rails
