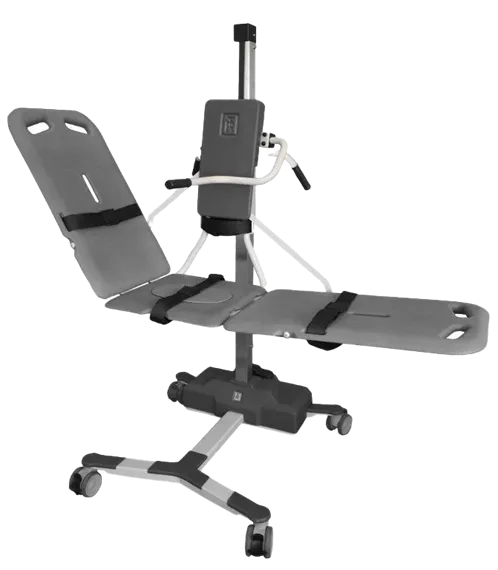

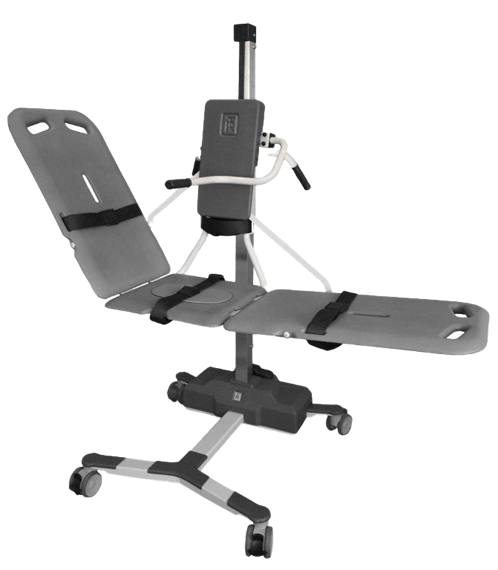

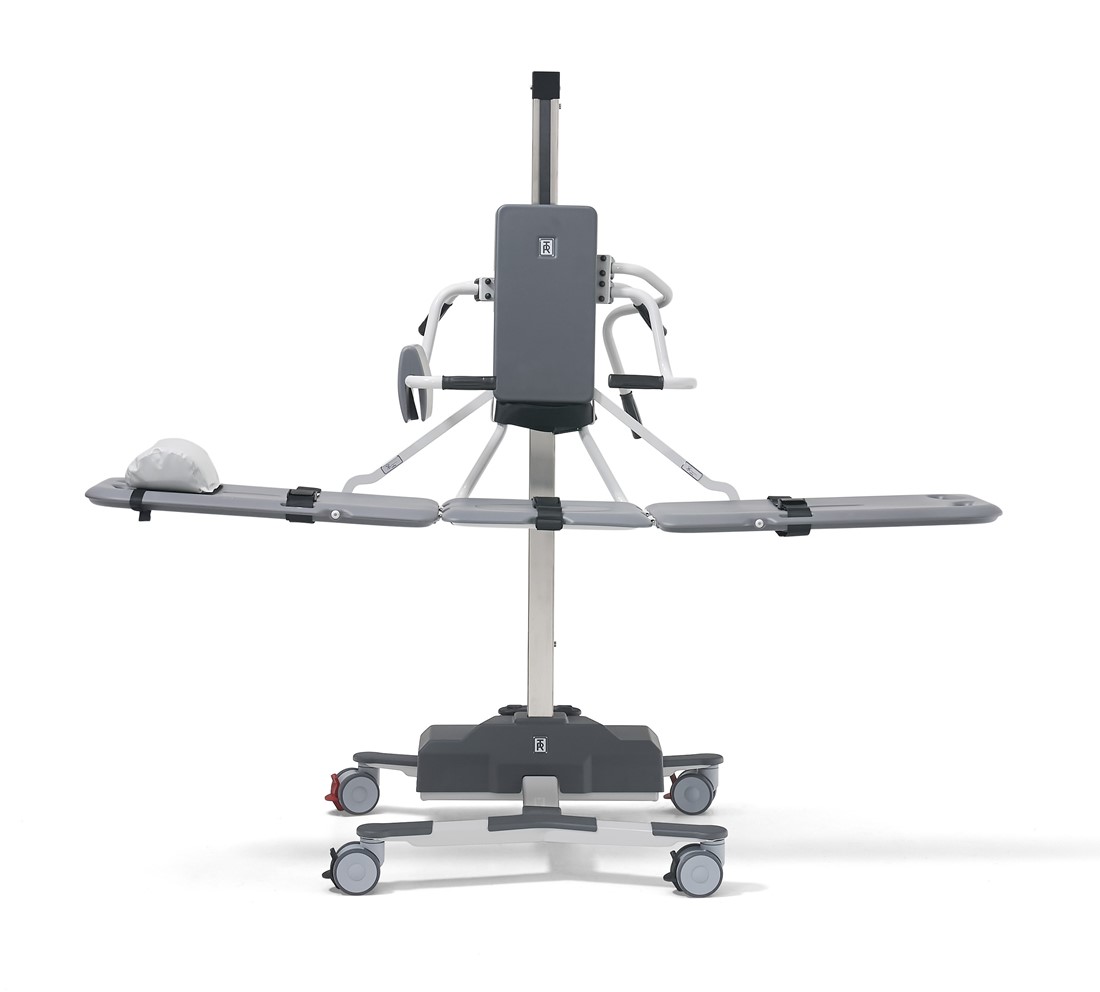

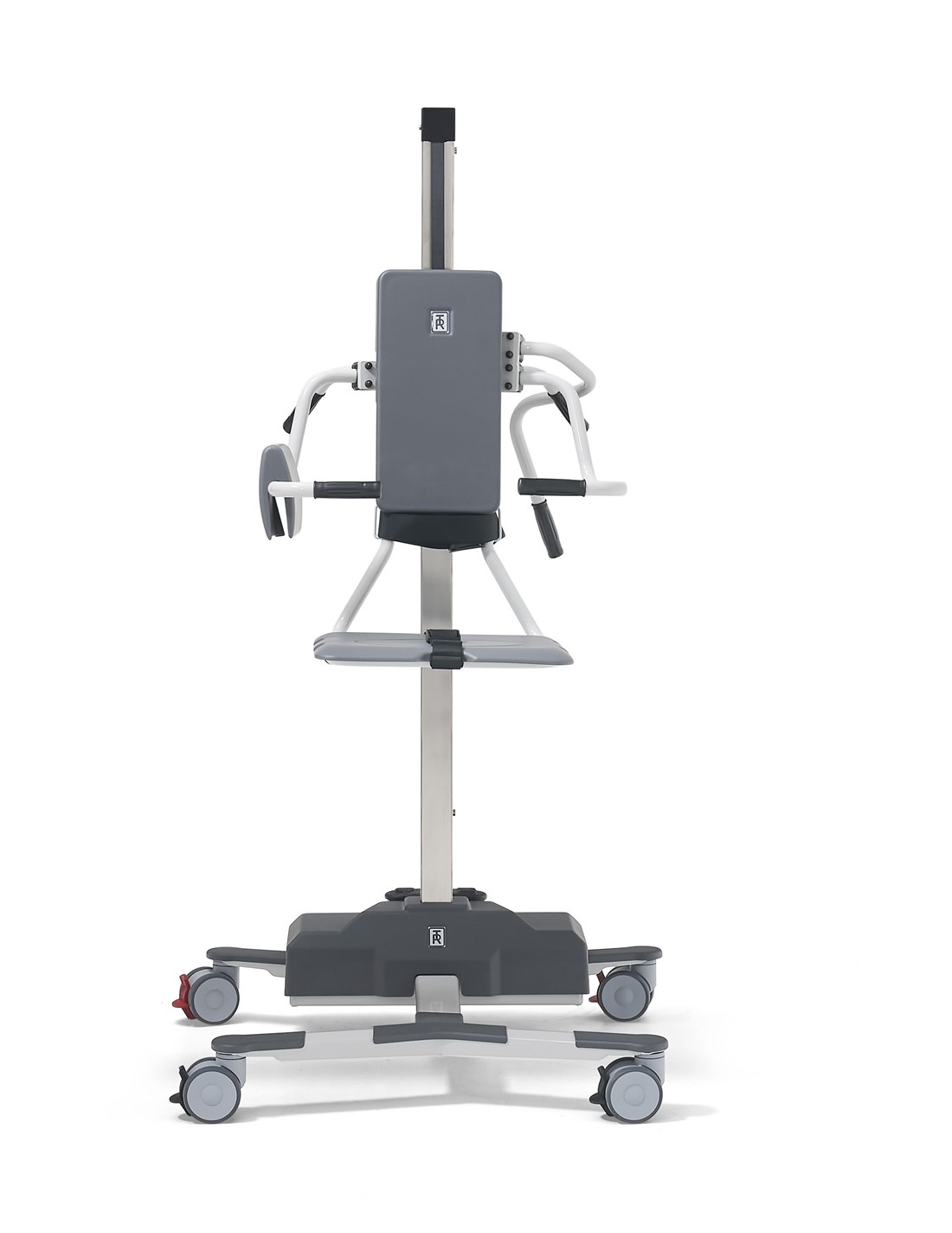

TR9650 Mobile Stretcher Lift
The mobile bath stretcher lift, designed for patients weighing a maximum of 150kg/330Ibs, features battery-operated height adjustment to meet the requirements of both patients and caregivers at hospitals and nursing homes.
It is an ideal choice for transferring, transporting, and bathing residents in various care environments.
Features
Standard Equipment

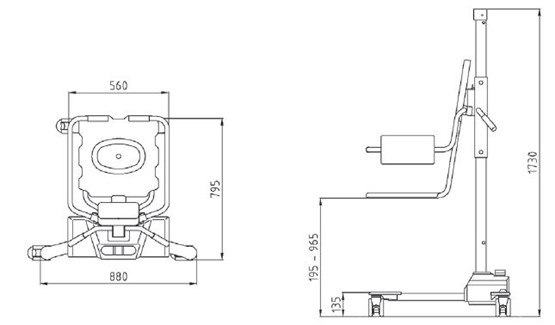

Measurements (mm)
Product Measurement document available for download at the bottom of the page.

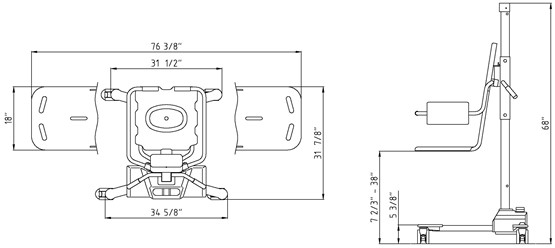

Measurements (inch)
Product Measurement document available for download at the bottom of the page
Autostop
The autostop prevents the chair from dropping if drive belt fails.
Magnetic battery charger
The magnetic battery charger is designed to prevent damage when charging.
Audio low battery tone
Batteries
Operated by two long life high capacity batteries.
Attachable Side Parts
Attachable side parts including head pillow for easy conversion from stretcher to chair with no tools required.
Maximum patient weight 150kg/330Ibs
Seating
Seating surfaces made of soft, durable material that is comfortable to sit on.
Backrest
Comfortable backrest for chair that can easily be moved to either arm for back support.
Saftey belt
Safety belt is incorporated into the Chair lift to provide security and assurance for both the patient and the caregiver.
For Caregiver
Safe Patient Handling
Safe and efficient handling and operation for transfer, transport, and bathing.
The Product is designed for caregiver´s ergonomic use.

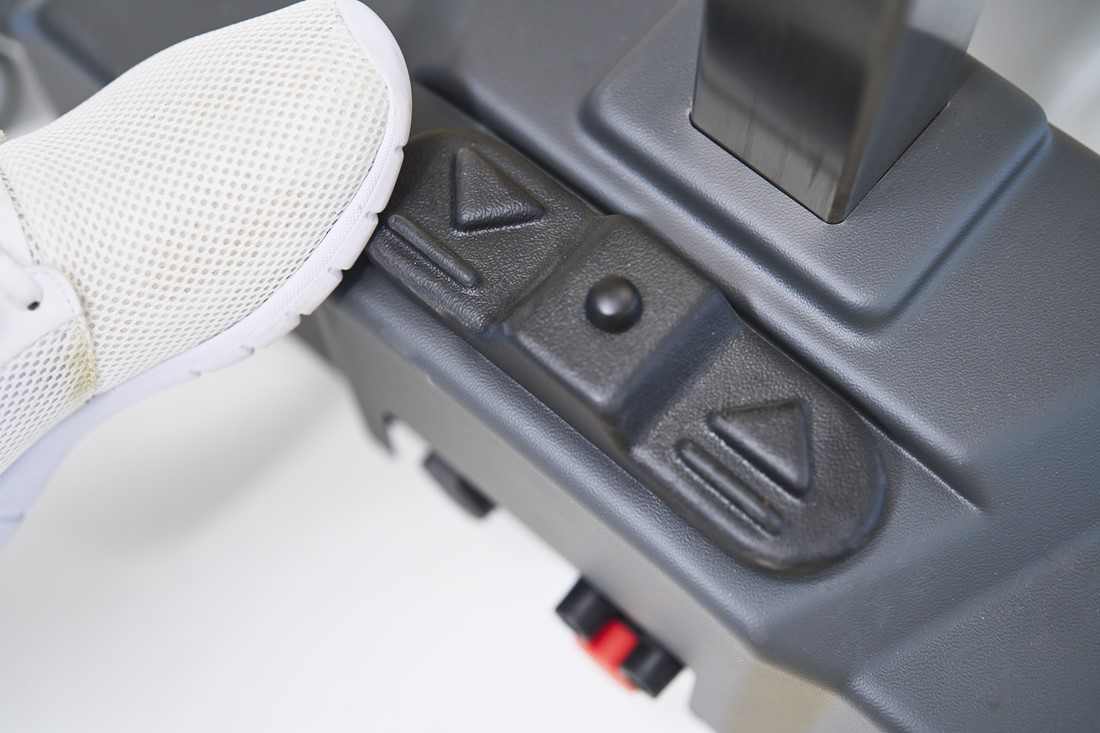

Safe height adjustment
Foot operated and height adjustable enables the caregiver to find the most efficent and convenient working height and gives the attendant both hands free to tend to the patient.
Clean design
The clean design gives the caregiver easy access to the patient and makes the Chair Lift easy to clean and maintain.
Low and narrow chassis
Low chassis for easy access under beds and baths and narrow chassis design so the patient easily and safely can be seated on to the chair. Leg clearance (floor to top of the legs 135 mm).
Foldable safety arms
The safety arms on the TR9650 Chair Lift can be folded away for easy access and they can be folded back once the patient is in position.
Ergonomic design
TR 9650 Mobile Chair Lift is designed for the caregivers ergonomical use.

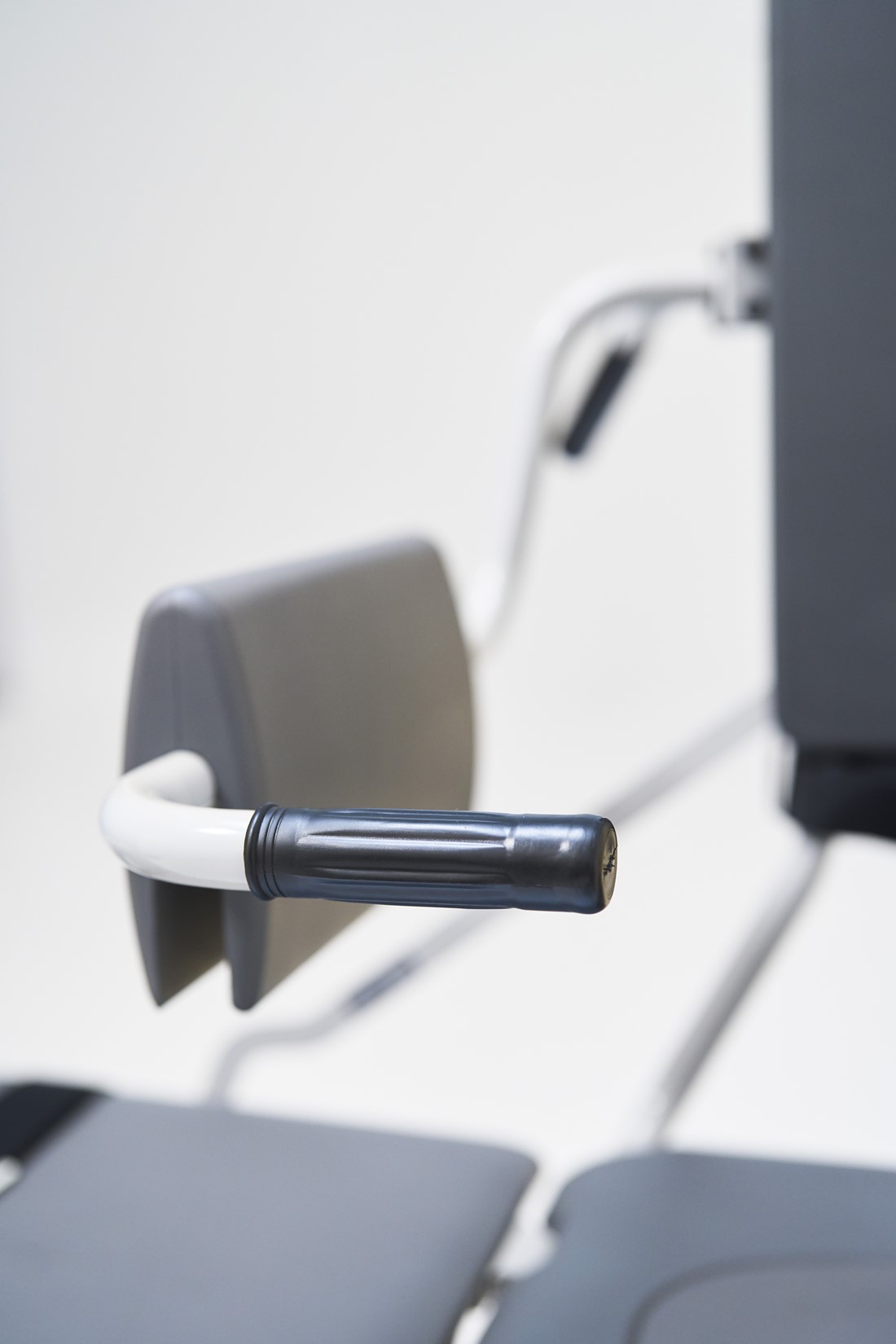

Hand grips
Ergonomically deigned hand grips for safe and efficient transfer, transport and bathing.
Use with TR Bathtubs
Together with the TR bathtubs the TR 9650 Chair Lift completes a system that offers a safe, labour efficient and person oriented bathing cycle with increased care quality.
Options
Spacer kit
Spacer kit raises the trolley height 52 mm (Factory mounted)
Extended armrests
Extended armrests to chair lift for extra safety, 90 mm both sides. (Factory mounted)
Extension for lift base
Extension for lift to increase the distance between lift column and chair/stretcher to suit different kind of baths.Standard 135 mm.Extension 60 mm to 80 mm.
Bed Pan Holder
The bed pan accessory option can be fitted to the chair to ease toileting.
Nurses at Jinnah Hospital Lahore are very satisfied with TR 900 SS CWA bathtub together with TR 9650 mobile patient lift. These products have facilitated the bathing operation for the nurses and prevented back pain thanks to the height adjustable function. Patients experience pleasant baths that have improved their daily struggle that they are enduring with burns injuries. The “single “ transfer with TR 9650 mobile patient lift has simplified the whole transfer from bed to bathtub without bothering injured patients to be moved several times.
Both TR 900 SS CWA bathtub and TR 9650 mobile patient lift are very simple to operate and to clean. We grant these products and the manufacturer a very positive feedback.
Nurses at Jinnah Hospital Lahore
Staff at burn unit Emergency Hospital for Children Grigore Alexandrescu find both TR 900 bathtub and TR 9650 to be very easy to work with. The fact that the products are height adjustable spare care givers backpain which has led to decrease in sickness leave related this specific problem. The operation of the products as well as the cleaning is very facile and not complicated at all. Patients appreciate the single transfer from bed to bathtub and their baths without any pain.
Staff at burn unit
