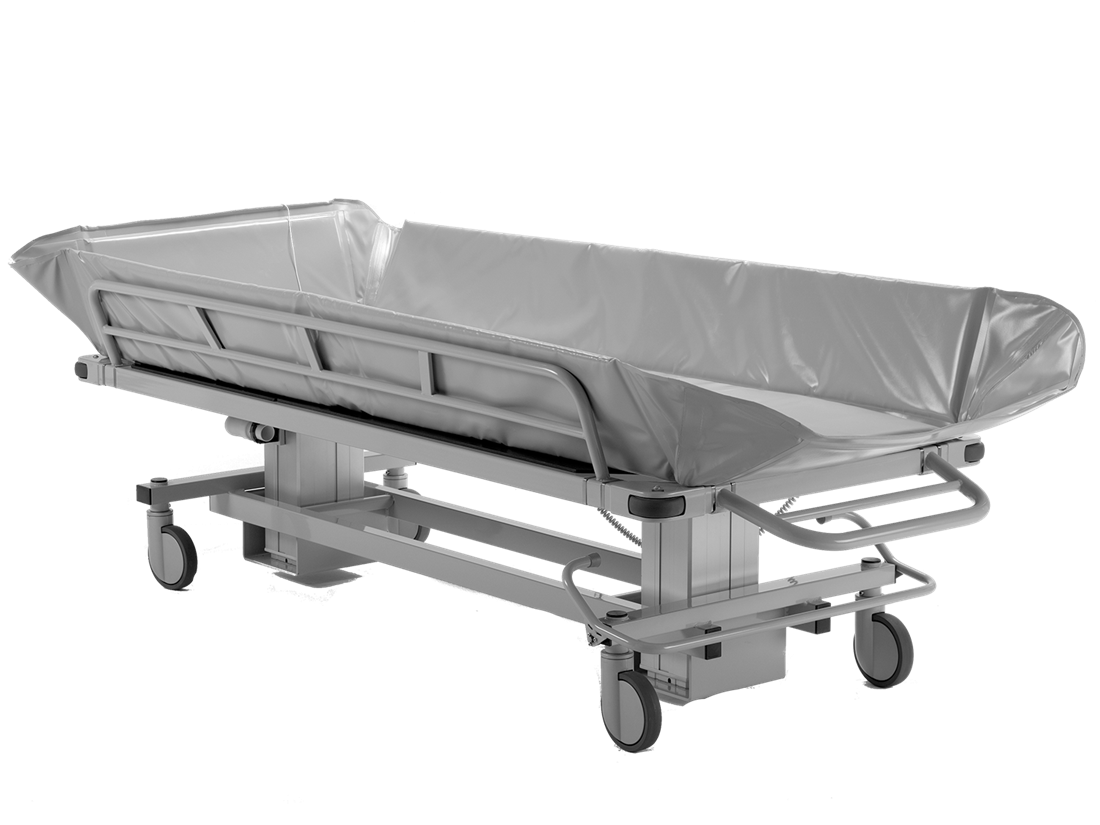

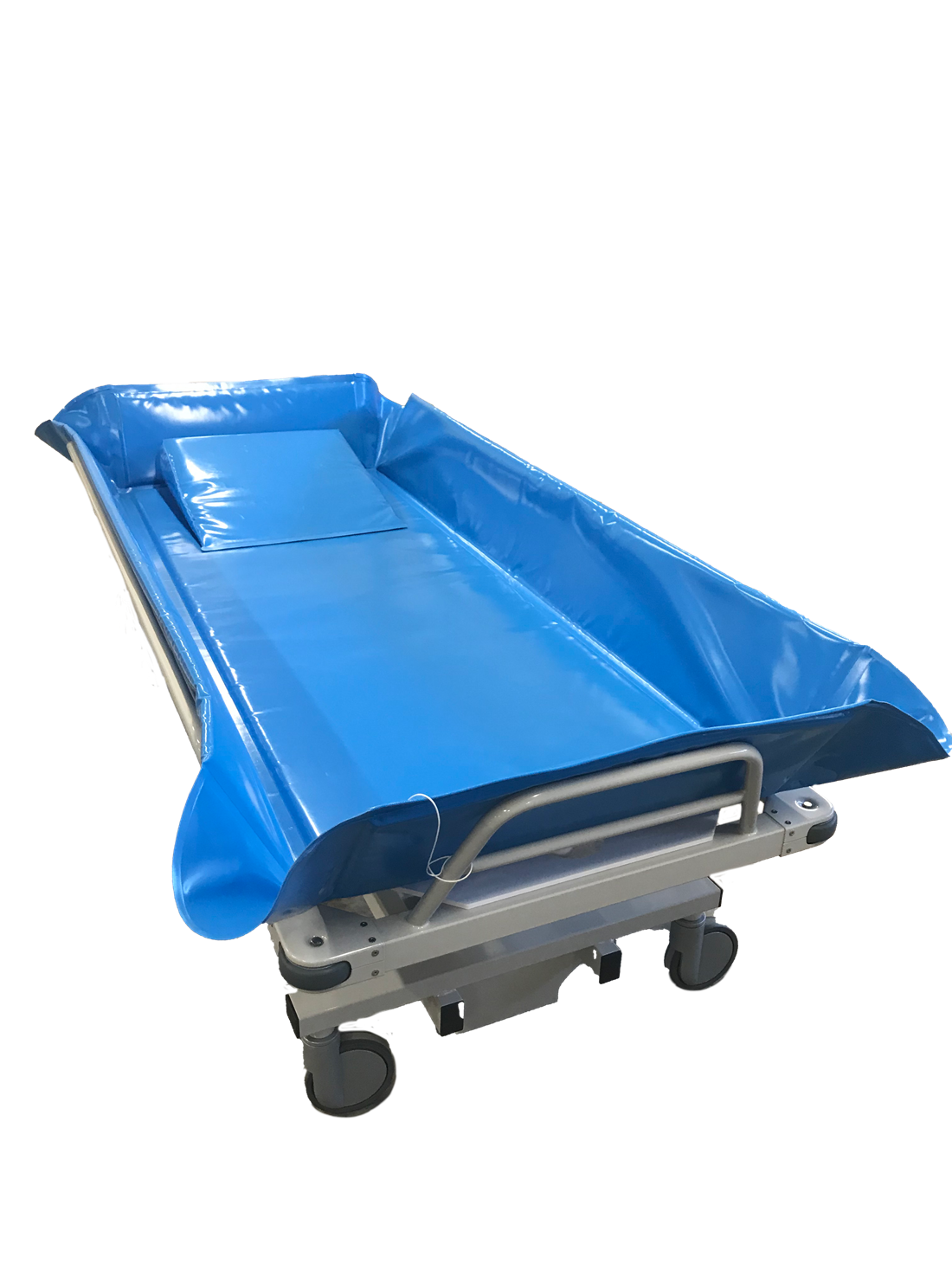

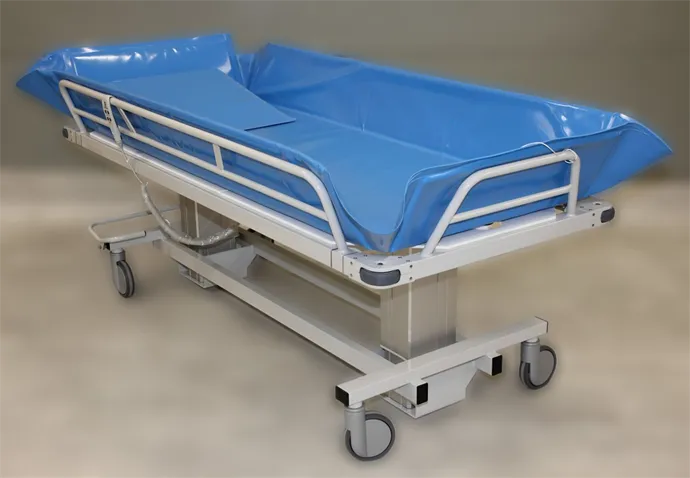

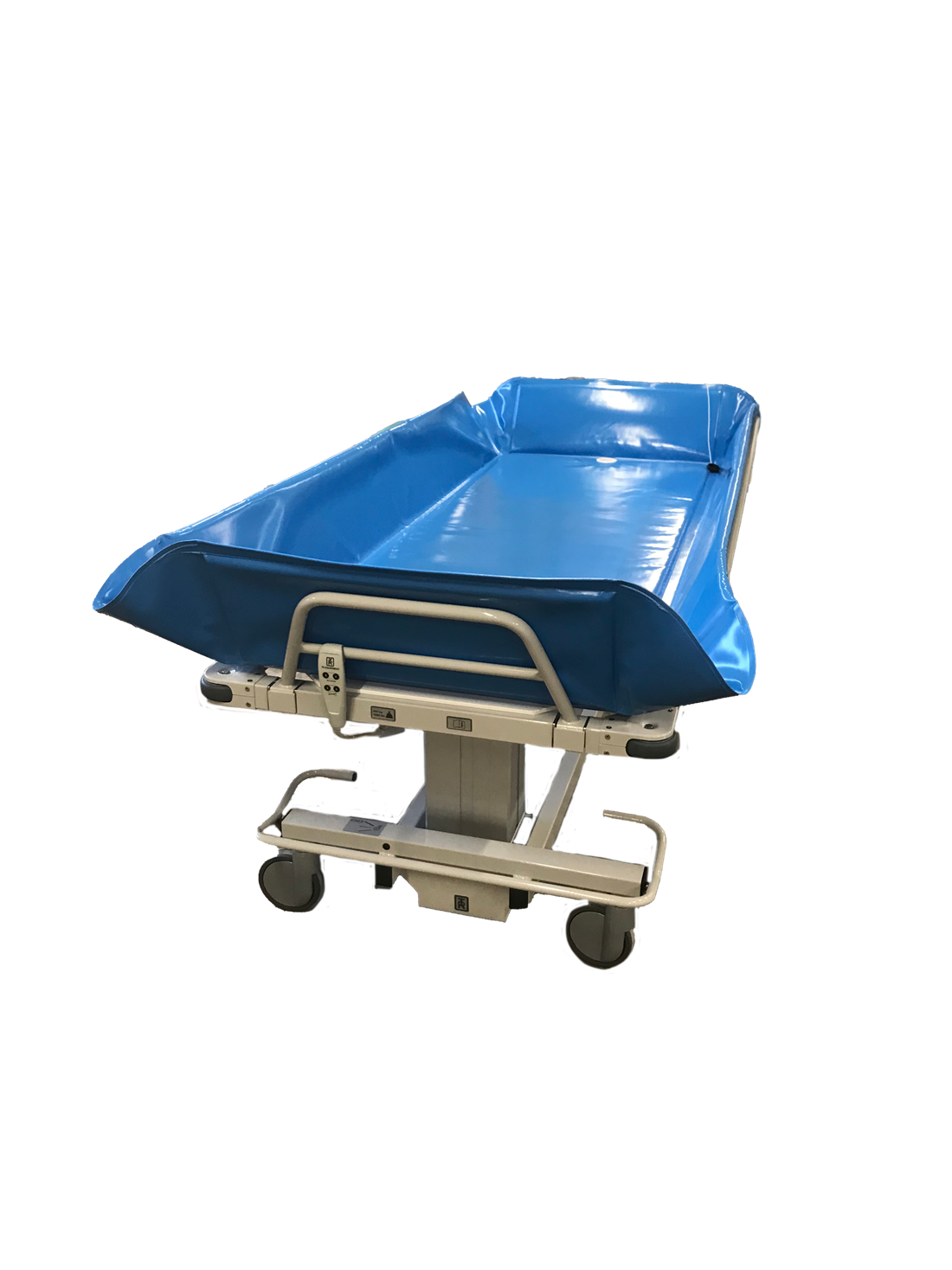

BARIATRIC SHOWER TROLLEY TR 4000

Offers safe, efficient and dignified care for plus size patients.

Battery operated bariatric shower trolley that meets all your hygiene and work safety related needs working with assisted showering.

Shower trolley with lots of power and plenty of body space designed for a Working Load Limit of 450 kg/1000 lbs.  The shower trolley is suitable for many different purposes besides showering, for example dressing and nursing: the possibilities are endless.

All versions are available with an on-board battery solution or with removeable rechargeable batteries. Complete shower trolley IPX5.

TR 4000 comes delivered ready for use with a  battery MagCode charger, mattress, 15 degree wedge pillow and 1 m flexible drainage hose.


See product documents

Features

Standard Equipment

Standard Equipment

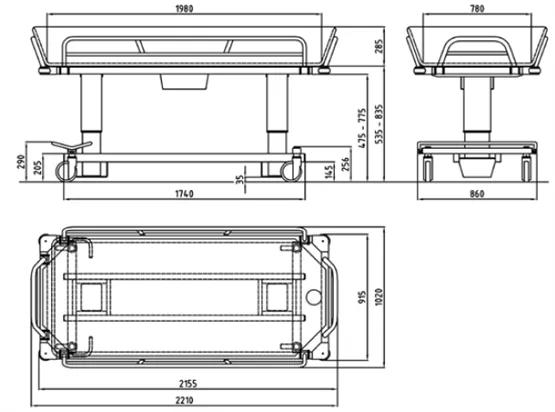

Measurements (mm)

TR4000 mm

Product Measurement document available for download at the bottom of the page.

Standard Equipment

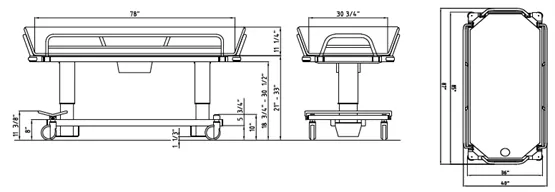

Measurements (inch)

TR4000 inch

Product Measurement document available for download at the bottom of the page.

Standard Equipment

Maximum patient weight of 450 kg / 1000 lbs



Standard Equipment

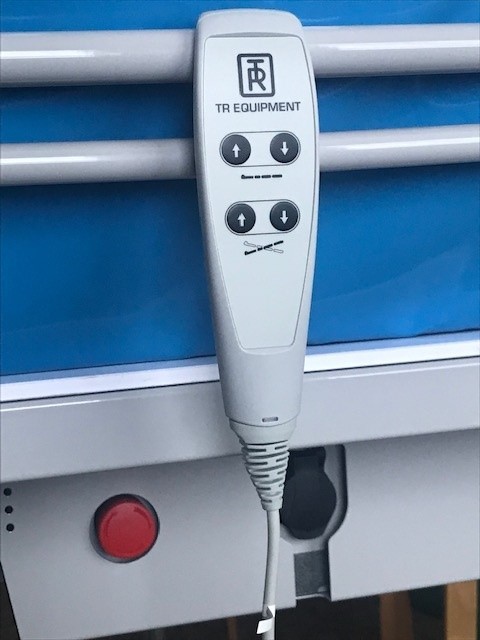

Hand control

The hand held control operates the power tilt in both directions and raises and lowers the trolley.



Standard Equipment

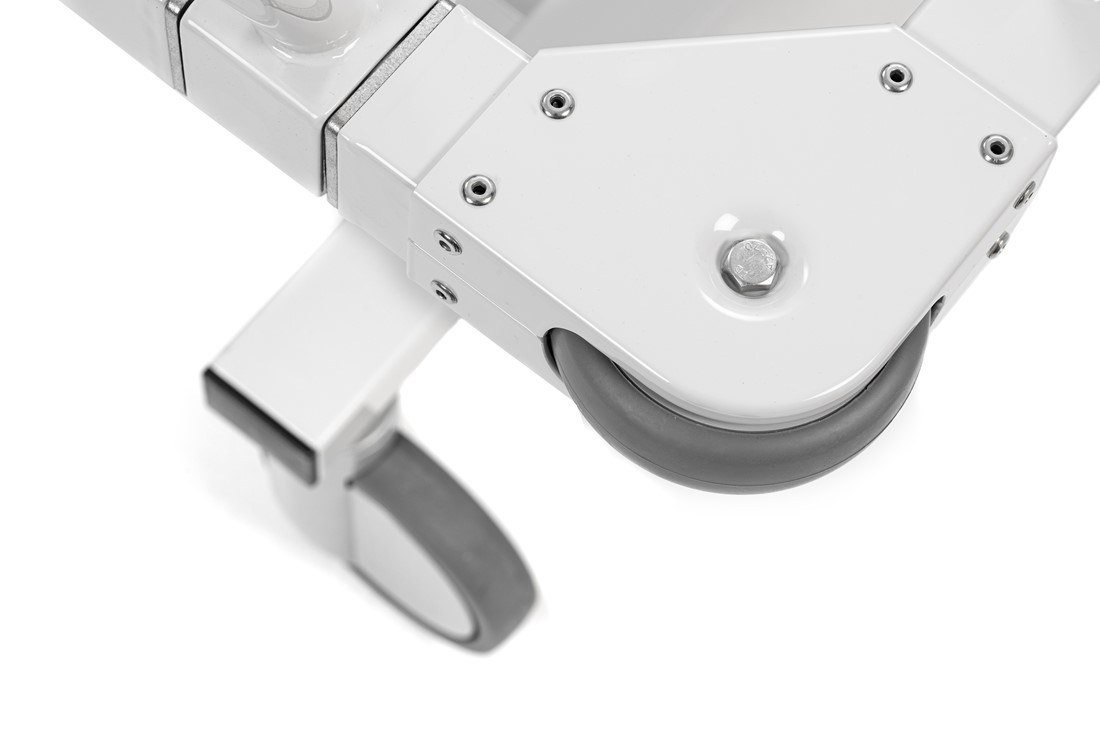

Bumper wheel protection

The stretcher has rubber bumper wheels on all four corners to protect walls and doorways.


Standard Equipment

Large castors

Large castors (150 mm) for convenient and easy transport of the shower trolley.


Standard Equipment

Mattress and head pillow

Well proven high quality durable mattress designed to last for years made in Flame retardant PVC material.
Easily removable from the shower trolley.

Standard mattress and pillow color for TR4000 is Blue.


Standard Equipment

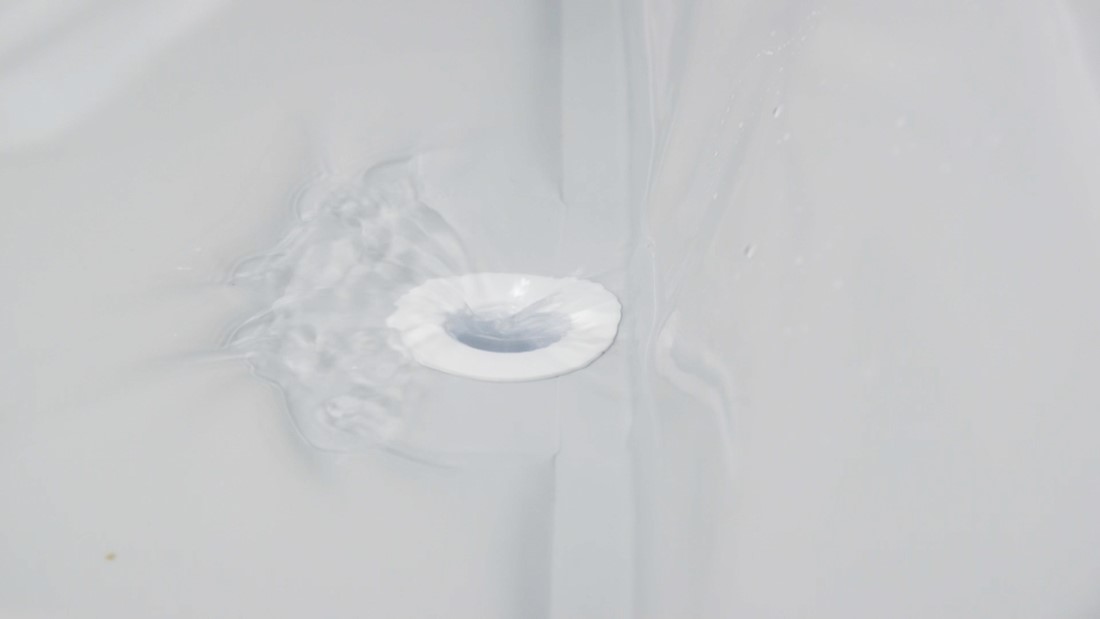

Drainage at the foot end



Standard Equipment

The chassis and sub-frames are made of powder coated stainless steel



Standard Equipment

High capacity batteries

On board, high capacity, rechargable batteries (24 V, 14 Ah) to be charged via main supply.

Magnetic battery charger connection for safety and ease of use.


Standard Equipment

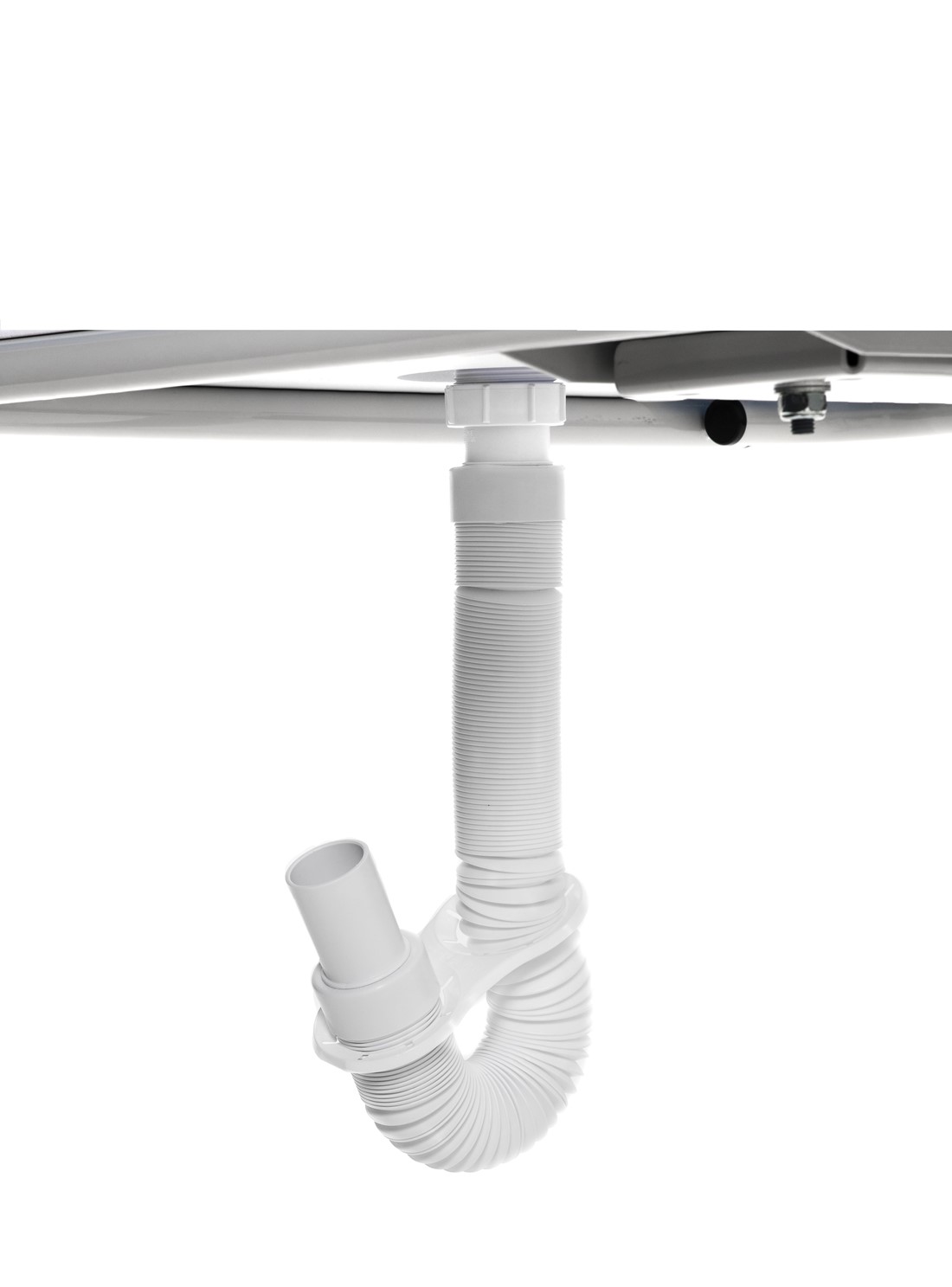

Flexible drainage hose, L=1 m



For Caregiver

Caregiver

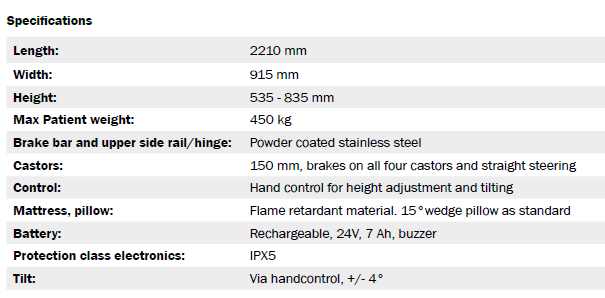

Basic specifications


Caregiver

Safe Patient Handling

The product is height-adjustable for caregiver's ergonomic use and is specifically designed and manufactured for safe in-patient hospital use showering both bariatric and taller patients.



Caregiver

Height adjustable

By using the hand control, the stretcher easily and quietly raises by two powerful actuators and enables a comfortable and ergonomic working position for the caregiver. The adjustment height is between 535-835 mm.


Caregiver

Tilt adjustment

By using the hand control, the stretcher can easily be tilted (+-4°) to the "Trendelenburg" position to alleviate a person in shock.
The tilting function also eases drainage.
An audible tone sounds when the stretcher is level.


Caregiver

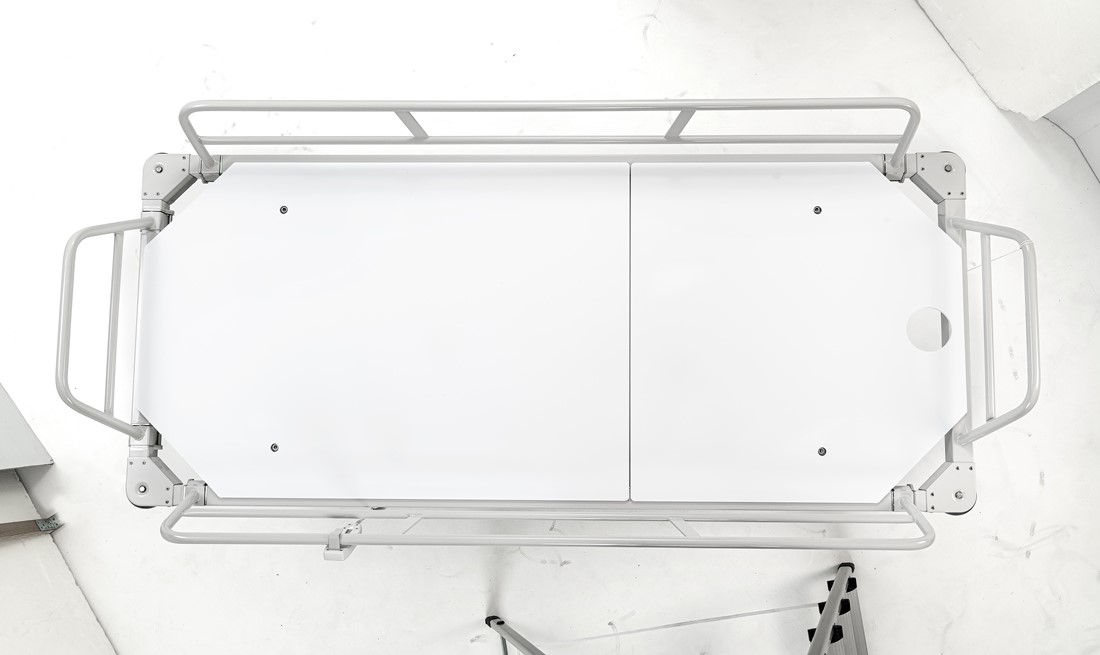

The mattress is easily removable


Inherent in the design of the TR4000 is safety for both the patient and caregiver while also being easy to clean and disinfect after use.

Caregiver

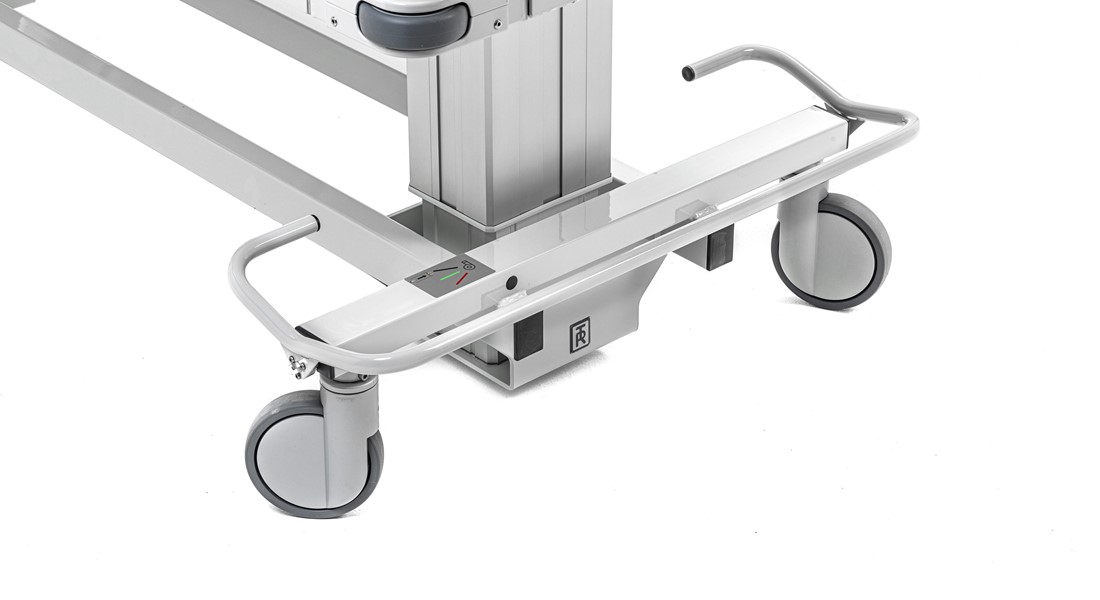

Centralized break and straight steering

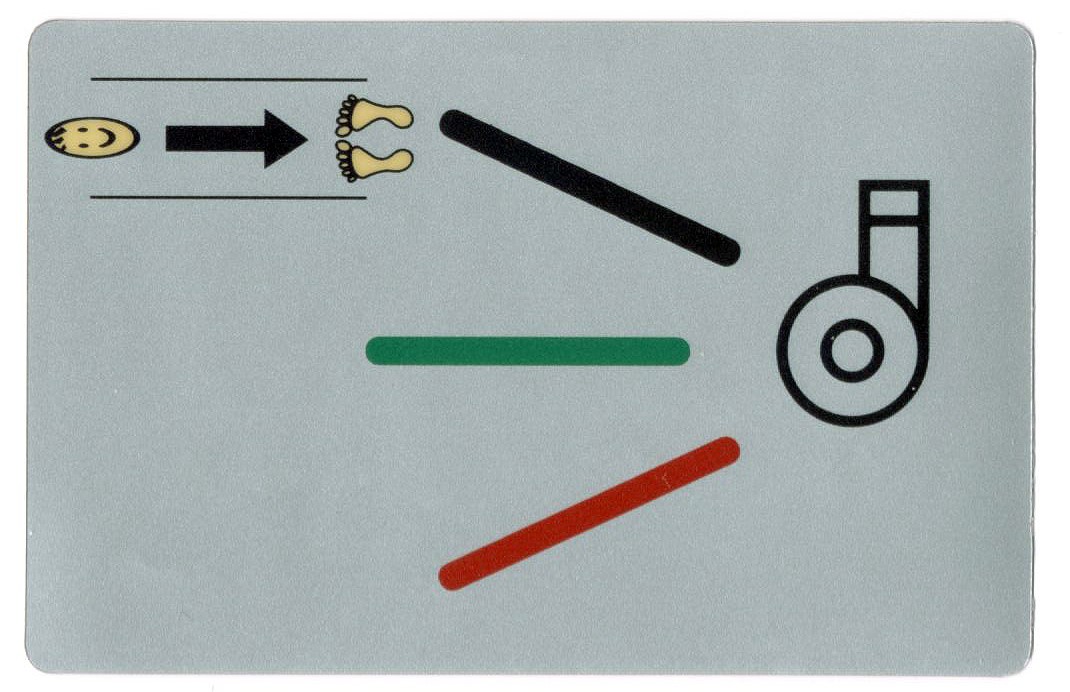

Convenient single foot control for brakes on all four castors and straight steering.




Caregiver

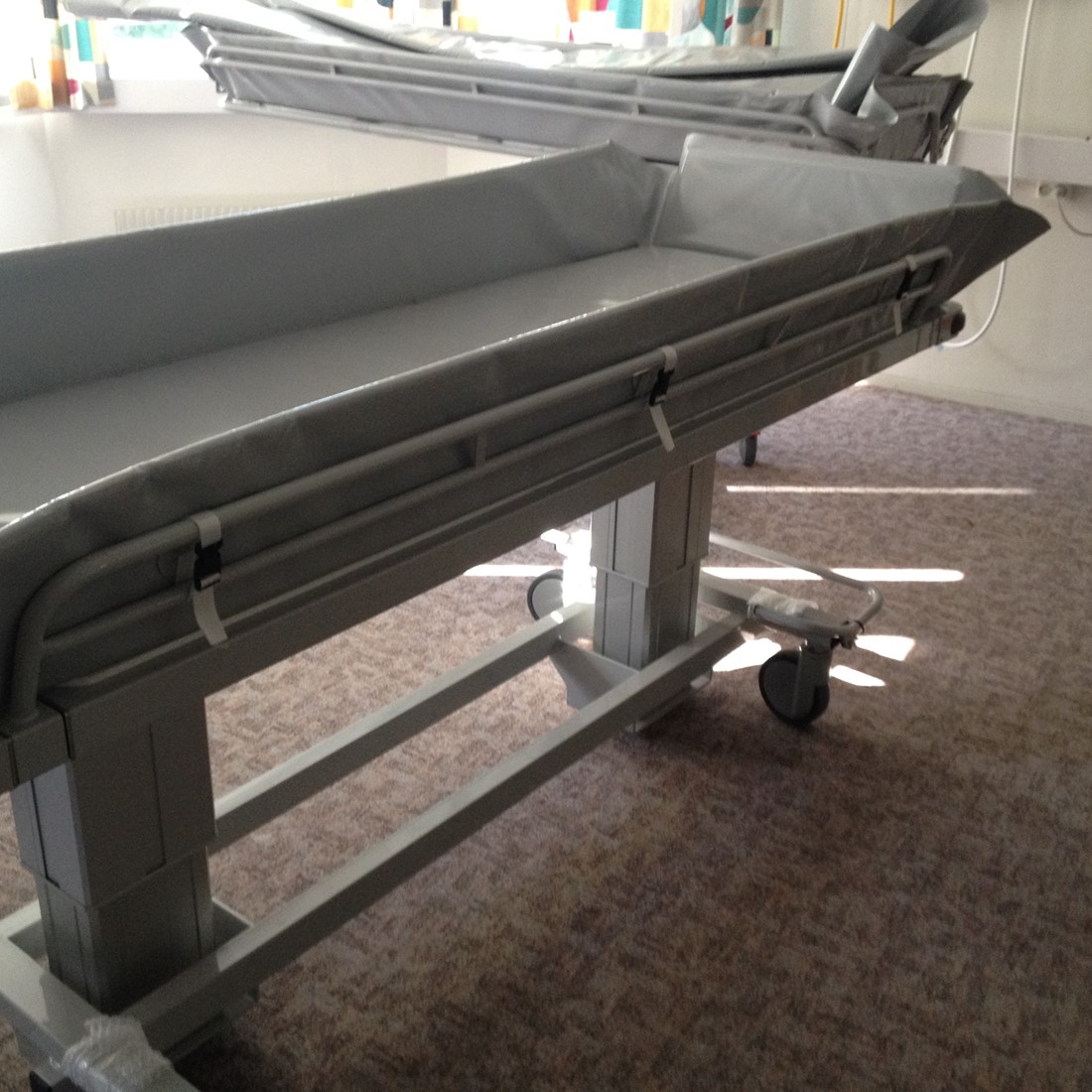

Foldable and flexible side rails

Shower Trolley with 180 degrees foldable side rails in stainless steel  that locks into position.
The flexible side rail gives the caregiver easier access during patient transfer, they can also be pressed together when passing through narrow doorways.


Caregiver

Extra body length

Head end rail folds to horizontal position for extra length.

Caregiver

Transfer and operation

The bariatric Shower Trolley is easy to operate, clean and maintain and offers efficient, safe  and dignified patient transfer, transport and showering.

Caregiver

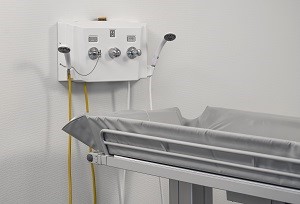

Use with TR 2810 Shower Panel

Suitable to use with TR 2810 Shower Panel to fulfill a complete shower system that is comfortable for both caregiver and patient.


Caregiver

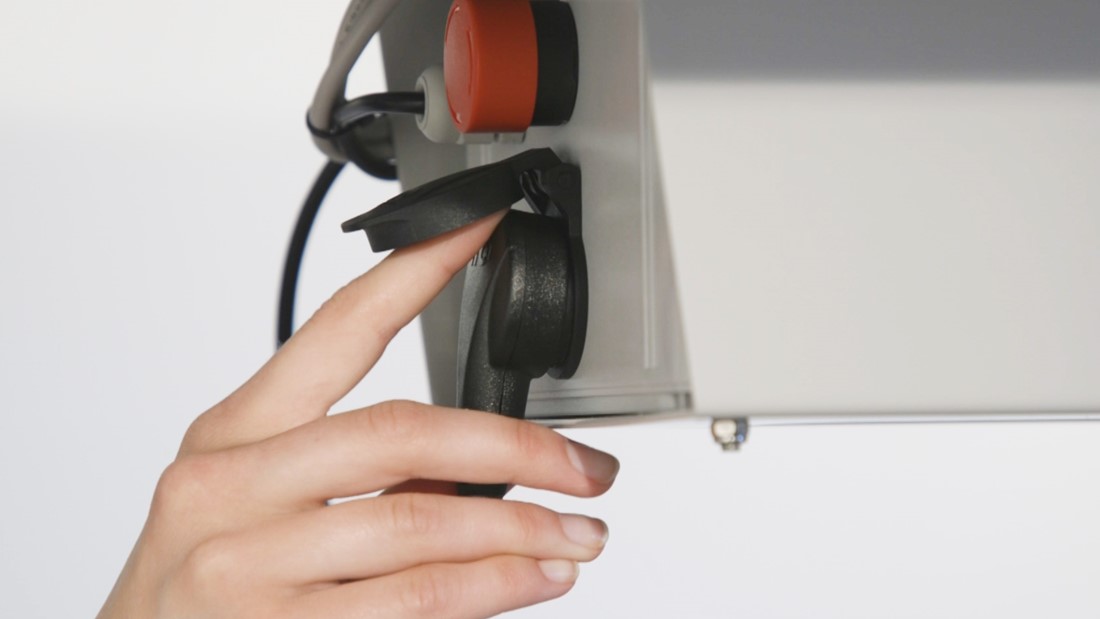

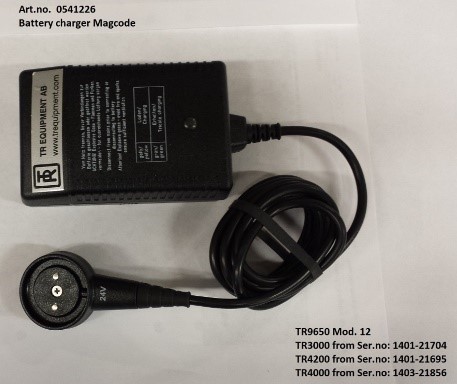

Easy to use MagCode Charger

Charge your shower trolley daily or when the low battery audible tone sounds.
The batteries cannot be overcharged and, if possible, best practice is to always charge when not in use. The battery charger is equipped with a magnetic connector to avoid damages on the charger if the shower trolley will be moved during charging.

The charging indicator shows the charging cycles.
Yellow while charging and Green when the batteries are fully charged.


Accessories / Options

Accessories/Options

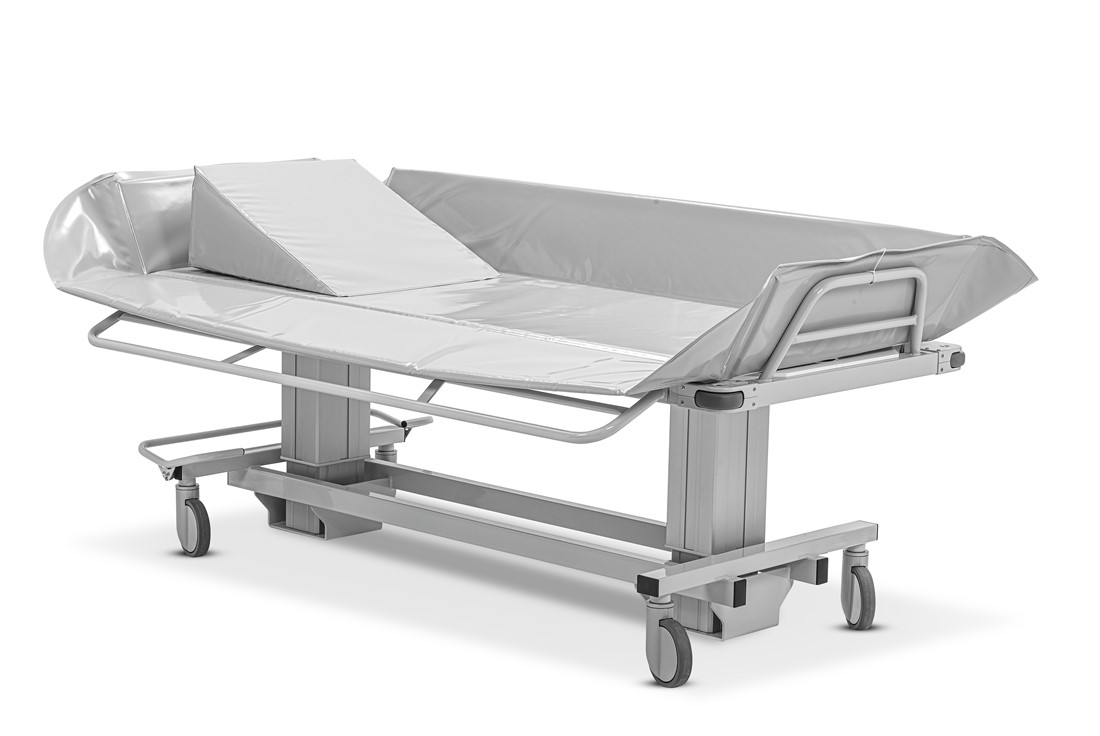

Backrest wedge pillow

Use of wedge pillows to incline the patient's back for comfort and safety.
TR 4000 come as standrad with blue mattress and a 15 degree wedge pillow, but a 30 degree wedge pillow (see photo) available as option.


Accessories/Options

Fastners/straps for attachment on mattresses to side rails


Accessories/Options

Long flexible drainage hose, L = 2,5 m

Instead of standard L = 1 m

Accessories/Options

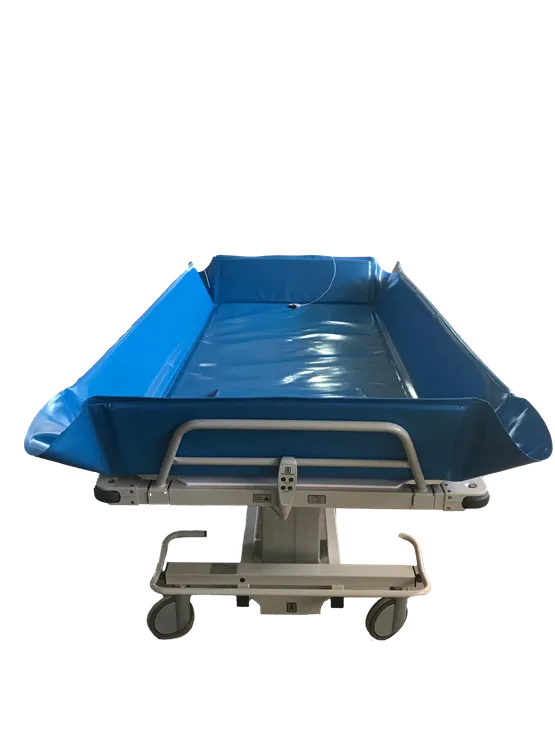

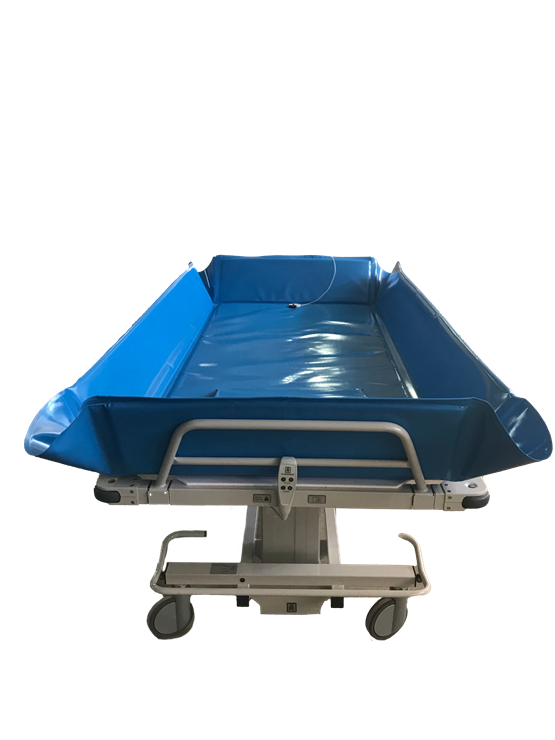

TR 4000W Multi Tasking Bariatric Shower Trolley

TR 4000 W 1

We have had 2 TR 4000 shower trolleys in operation in our burn department for over 10 years.
An extremely reliable, easy-to-handle shower trolley with a large patient area.
TR 4000 is an excellent patient aid when washing the patient and its construction makes it easy to disinfect.

Johan Spjut BRIVA US Linköping, Sweden.
