BATHTUB TR 1700
TR 1700 was specifically designed for pediatric use and to optimize smaller spaces without sacrificing function and efficiency.
Height adjustable bathtub allows optimal use of a limited floor space without sacrificing function and efficiency. Ideal for hospitals, nursing homes and private homes who have limited space and require a fully functioning bathtub.
Features
Standard Equipment
Measurements (mm)
Product measurements document available for download at the bottom of the page.

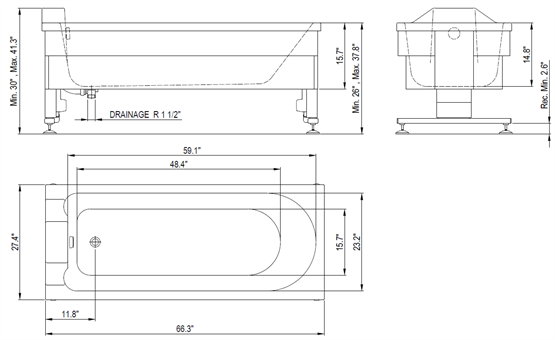

Measurements (inch)
Product measurements document available for download at the bottom of the page.
Thermostatic mixer
The factory mounted thermostatic mixer regulates both the bathtub filling and the shower water temperature.
High quality bathtub
The bathtub is made of fiberglass reinforced polyester. The frame and the skirts are made of powder coated steel.
Overflow control and pop-up drainage incl. drainage hose
40 mm drainage that can be attached to the floor or the wall.The pop-up drain opens and closes the drainage system by rotating the overflow valve.
Adjustable feet
Adjustable feet increase safety and comfort if the floor should be uneven.
Dual actuators
The TR1700 raises quietly and quickly thanks to two synchronized lifting columns.
Maximum patient weight of 150 kg/330 lbs
For Caregiver
Basic specifications
Safe Patient Bathing
TR 1700 is designed for caregiver's ergonomic use.
Height adjustment
The TR 1700 Assisted bathtub is height adjustable for an ergonomic work environment for the caregiver.
Lowest position: 660 mm
Highest position: 960 mm
Hand control
The hand control for raising and lowering the TR 1700 can be operated from either side of the tub.
Hygienic emptying
A pop-up drainage closes an opens by turning the overflow valve. No hands need to be in the water.
Shower handle
The TR 1700 Shower handle has a soft rubber outlet nozzle which is easy to clean and that gives comfortable soft water dispersion.
Size vs. space
The size makes the TR 1700 possible to place even in bathrooms with limited space without sacrificing function, efficiency or comfort.
Use with TR 9650 Mobile Chair Lift
Sutiable to use with TR9650 Mobile Chair Lift or other Patient Lifts, mobile or ceiling hoist systems.
Options / Accessories
Can be delivered without thermostatic mixer and shower
50 mm drainage
Comes as standard with 40 mm drainage.
Castors for mobility
Color option for feet and skirt
Shepherds Crook (UK)
Shepherds Crook for shower hose to comply with UK regulations regarding category 5 back flow prevention (Option)
Product only available at UK retailers
TMV Brassware (UK)
Can be equipped with differebt brassware, TMV2/3 and WRAS approved, for the UK market depending on the application.
Product only available at UK retailers
Use with TR 9650 Bath Chair Lift
Suitable to use with the TR 9650 Chair Lift or other Patient lifts, mobile or ceiling hoist systems.Chair Lift TR 9650
TR Equipment have been with us from initial concept working with the Architect, to supply, install, commissioning and staff training, their TR1700 height adjustable bath has always proved it was the right choice for our business, very reliable, very price competitive and perfect for the limited space requirements we had to deal with. If we as a group ever need height adjustable baths in future I would not hesitate in using TR Equipment again.
General Manager - Care Home Facility, UK
TR Equipment have supplied us with their TR1700 height adjustable bath, we had a limited space available as the height adjustable bath had to fit within the same envelope as the existing fixed bath, we also wanted the bath to colour match the bathroom décor to make it less institutional, and the bath had to be carried up 3 levels to the top floor of our house. Quite a big wish list but TR Equipment met all our expectations even took the old bath away!........the TR1700 looks great in our new bathroom and now bath time is fun instead of being a potential back injury.
Parent – London, UK
The ‘TR1700’ height adjustable bath from TR Equipment was installed around 5 years ago, it is in constant use within our care home, and we have never had any issues with it at all. Being only 1.7M long it was perfect for a small bathroom which we refurbished at that time. The residents and carers love this bath, it retains heat very well and rises to nearly a metre and therefore back strain is avoided.
Care Home Manager – Suffolk, UK
